SECTION 3 - HYDRAULIC SYSTEM SERVICE
page 3-17

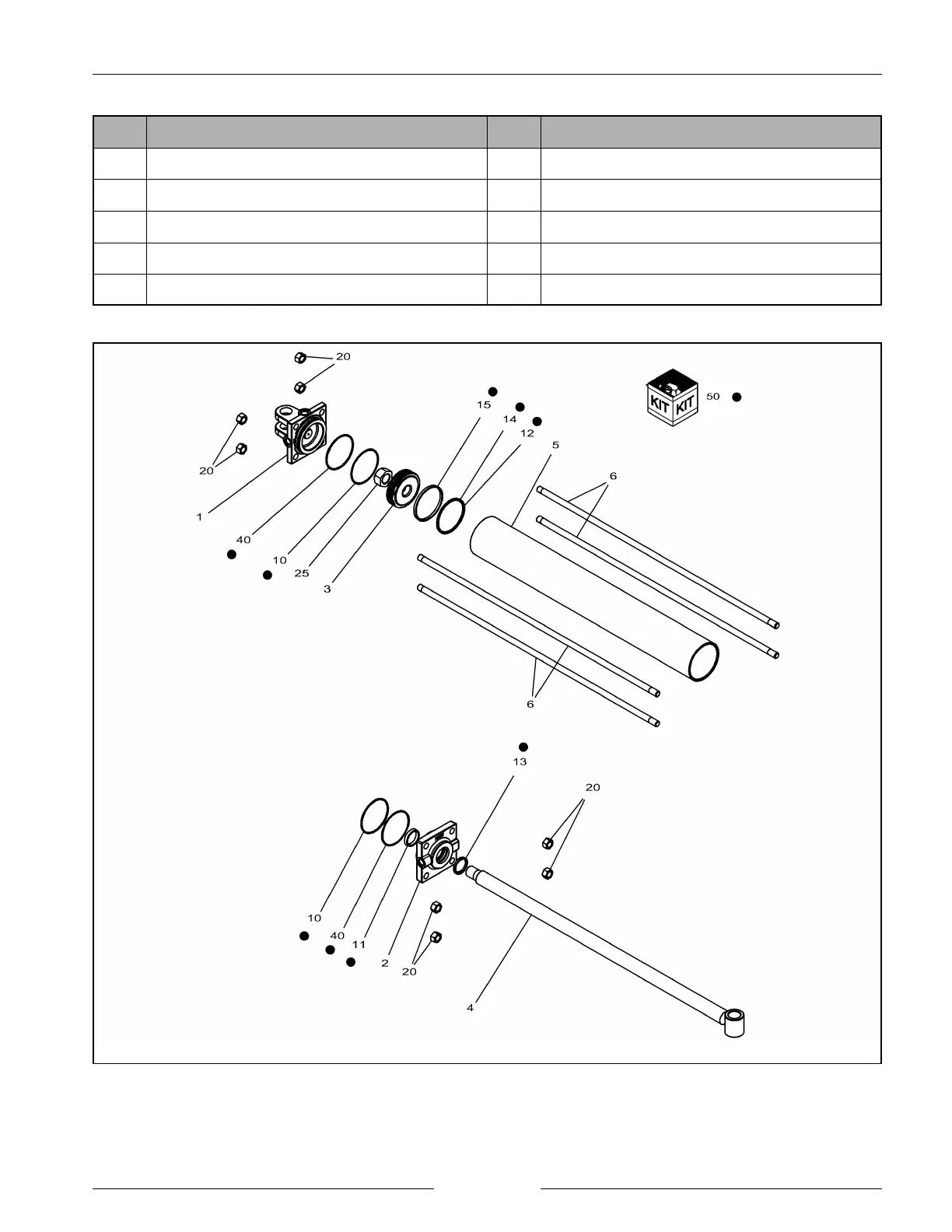

SDX40 Wing Lift Hydraulic Cylinder Components
645548
REF DESCRIPTION REF DESCRIPTION
CYLINDER 5X12 3000PSI W/ 1 PIN MON 5 CYLINDER TUBE
1 HEAD 6 BOLT
2 HEAD 20 NUT, 3/4"
3 PISTON 25 NUT, LOCK, 1 1/2"
4 ROD 27 PLUG, 3/4"
SDX40 Wing Lift Hydraulic Cylinder Components
