SECTION 2 - MECHANICAL SERVICE
page 2-38

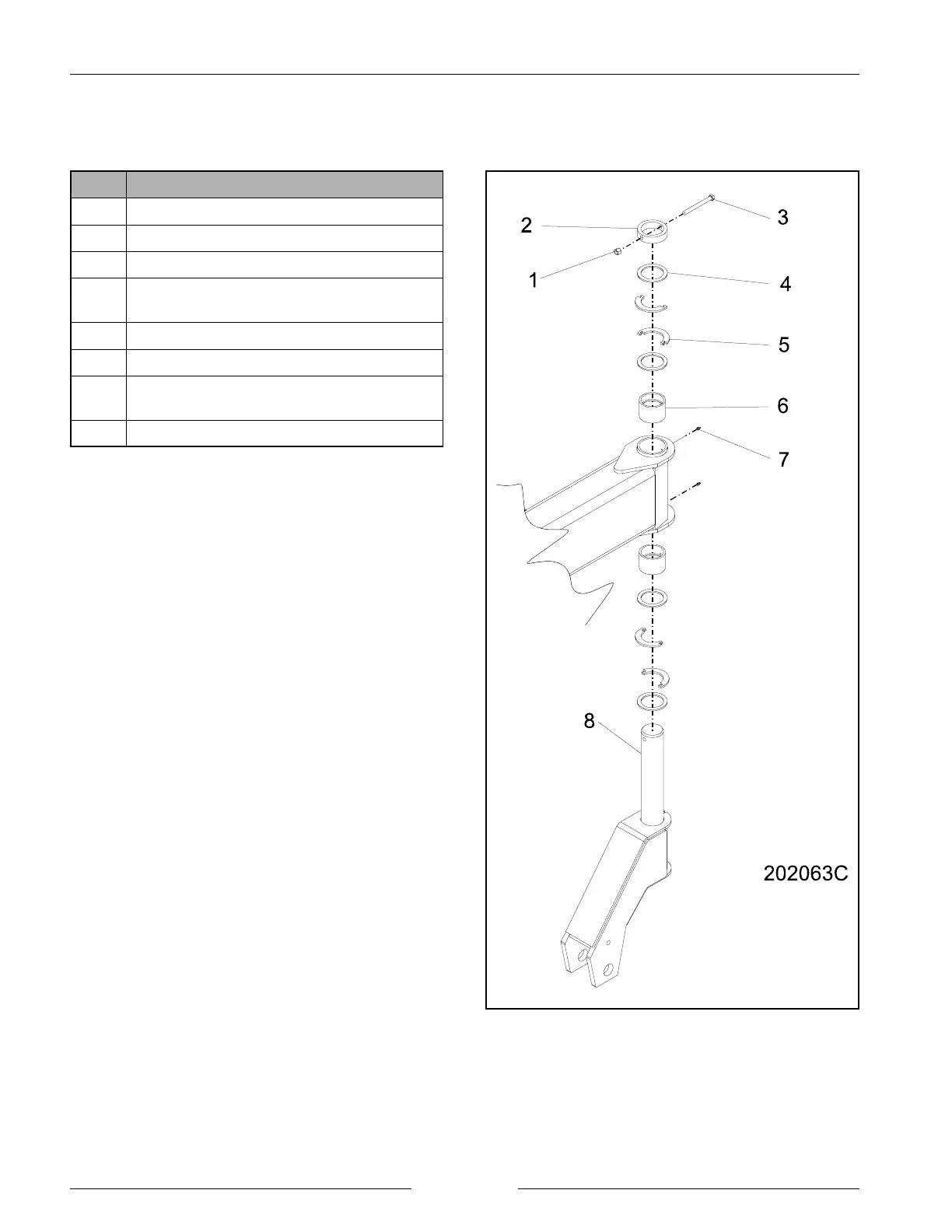

Caster Pivot Assembly
SDX40 CASTER PIVOT SERVICE
REF DESCRIPTION
1 NUT, LOCK .5 UNC GR A YZD NYL LK
2 RETAINER KING PIN PNT
3 BOLT .5 X 5 UNC GR5 YZD
4 WASHER, THRUST 3.04 ID 4.0 OD .188
HRD
5 SHIM SPLIT .25'' THK PLN
6 BUSHING BRONZE 3 ID X 3.5 OD
7 NIPPLE, LUBE GREASE ZERK STR
.25NF TAPER
8 CASTER ASSY FRONT
Caster Pivot Assembly
