SECTION 6 - AIR SYSTEM SERVICE
page 6-17
Header Assemblies and Mounting Hardware
202321C
AIR SYSTEM COMPONENTS - ADX AIR SYSTEM
HEADER ASSEMBLIES
REF DESCRIPTION REF DESCRIPTION
1 SPRING CLIP LID EZ FLOW HEADER 9 INSERT HEADER EZ FLOW GLUED
2 SCREW TAP .25-15 X .5 PH B PI 10 INSERT NOSE HEADER
3 INSERT HEADER PORT 11 CLAMP MUFFLER, 2.5 .312 ROD PLT
4 LID EZ FLOW HEADER C/W SEAL 12 NUT . 313 - 18
5 CLAMP HOSE NYL 1.47-1.72 ID 13 CLAMP #44 - STAINLESS
6 CABLE CORD ESTANE HEADER
SECURING
14 NUT, LOCK .5 UNC GR A YZD NYL LK
7 RING,SPECIAL SPLIT 1.063 ID 15 BRACKET SECONDARY MFLD PTD
8 STAND SECONDARY ELBOW 16 BOLT "U" US .50 X 6.06 X 5.00 ID

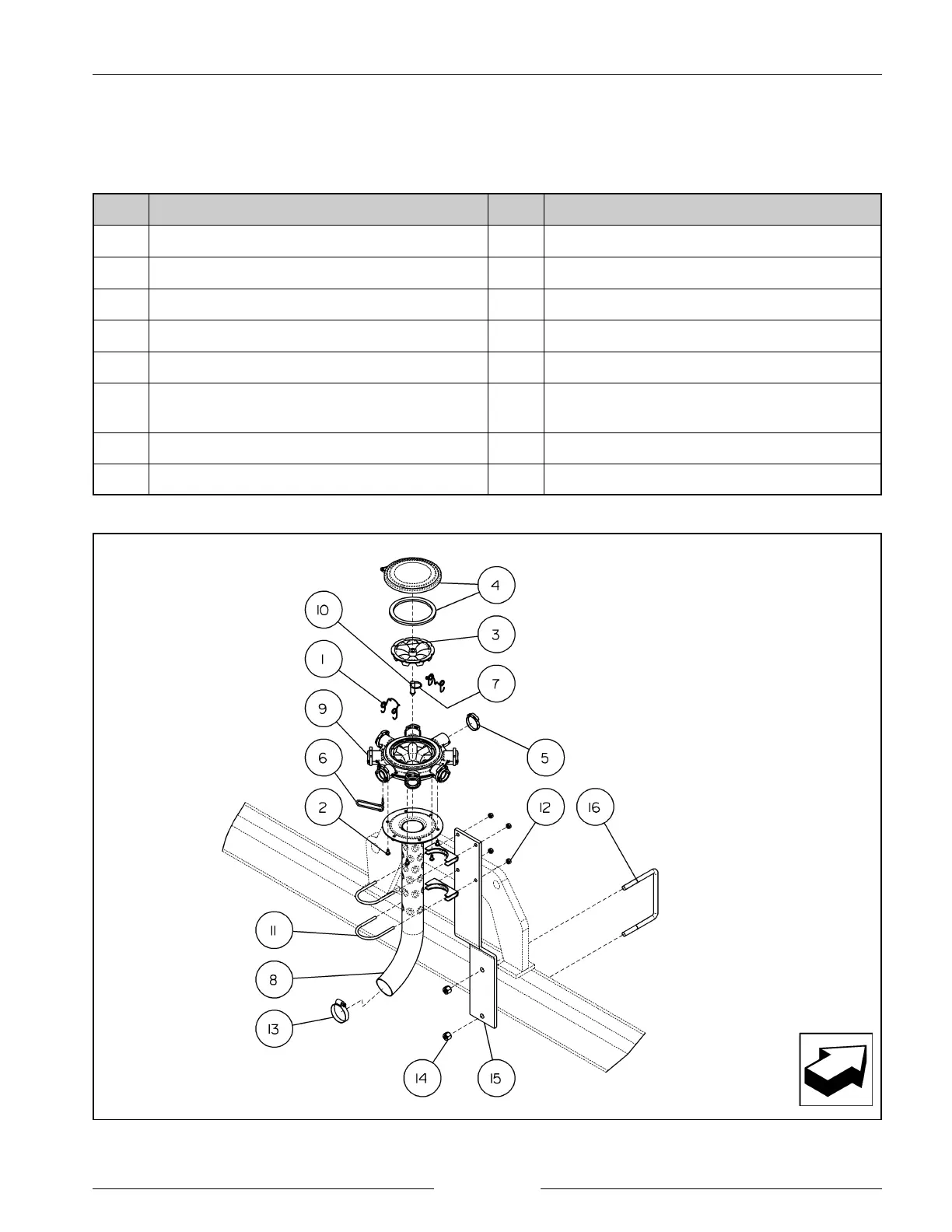

Header Assembly Parts
