SECTION 1 - SAFETY
page 1-13

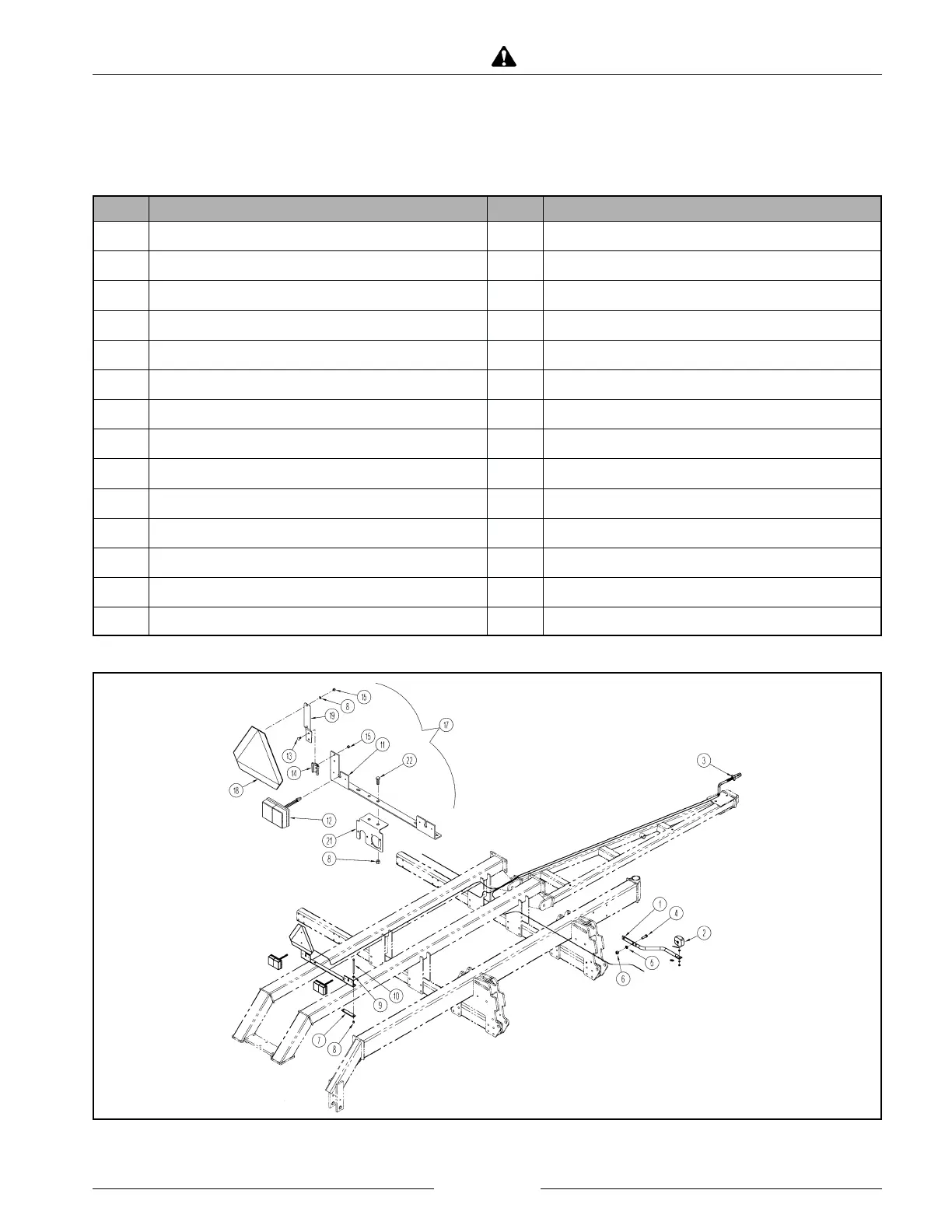

Safety Lighting Assembly
ma00d020
REFLECTOR DECALS, SLOW MOVING VEHICLE SIGN AND TRANSPORT LIGHTING
SDX30 1
st
SERIAL RANGE - to Serial Number BSN CKB0028188
REF DESCRIPTION REF DESCRIPTION
1 BRACKET LIGHT PLAIN 13 BOLT 5/16-18 X3/4 GR5 ZND CRG
2 LIGHT ASSY. WARNING 14 BRACKET SOCKET SMV SIGN / LAMP MOUNT
3 HARNESS LIGHTING SDX (Non-AFS Only) 15 NUT .313 UNC YZD NYL INS
HARNESS TILLAGE AFS RT SDX (AFS Only) 16 NUT M5 CLASS 5 ZND
HARNESS TILLAGE AFS FT SDX (AFS Only) 17 PLATE ASSY. SMV
4 BOLT .75 X 2.5 UNC GR5 YZD EMBLEM PLATE ASSY, SMV 2 BOLT HOLES
5 WASHER .813 ID 1.5 YZD SAE SCREW MCH .25-20X.5 PH PI YZD
6 NUT, LOCK .75 UNC GR C YZD NUT .25 UNC GR5 YZD
7 PLATE, LARGE BACKUP 18 TRAFFIC SIGNS PLATE - SMV
8 NUT, LOCK .5 UNC GR A YZD NYL LK 19 SUPPORT SMV SIGN
9 WASHER .531 X 1.062 X .095 20 DECAL SMV EMBLEM
10 BOLT .5 X 7.5 UNC GR5 YZD 21 BRACKET (AFS Only)
11 ANGLE TAILLIGHT SUPPORT PNT 22 BOLT .5 X 1.5 UNC GR5 YZD
12 LAMP STOP / TAIL & TURN
Drill Transport Lights, Reflector Decals and SMV Sign
