Case SDX30 - SDX30 Wing Lift Hydraulics; Serial Range - up to Serial Number; Wing Lift Hydraulic Schematics

SECTION 3 - HYDRAULIC SYSTEM SERVICE
page 3-19
SDX30 Wing Lift Schematic - 1
st
Serial Range
MA99N062

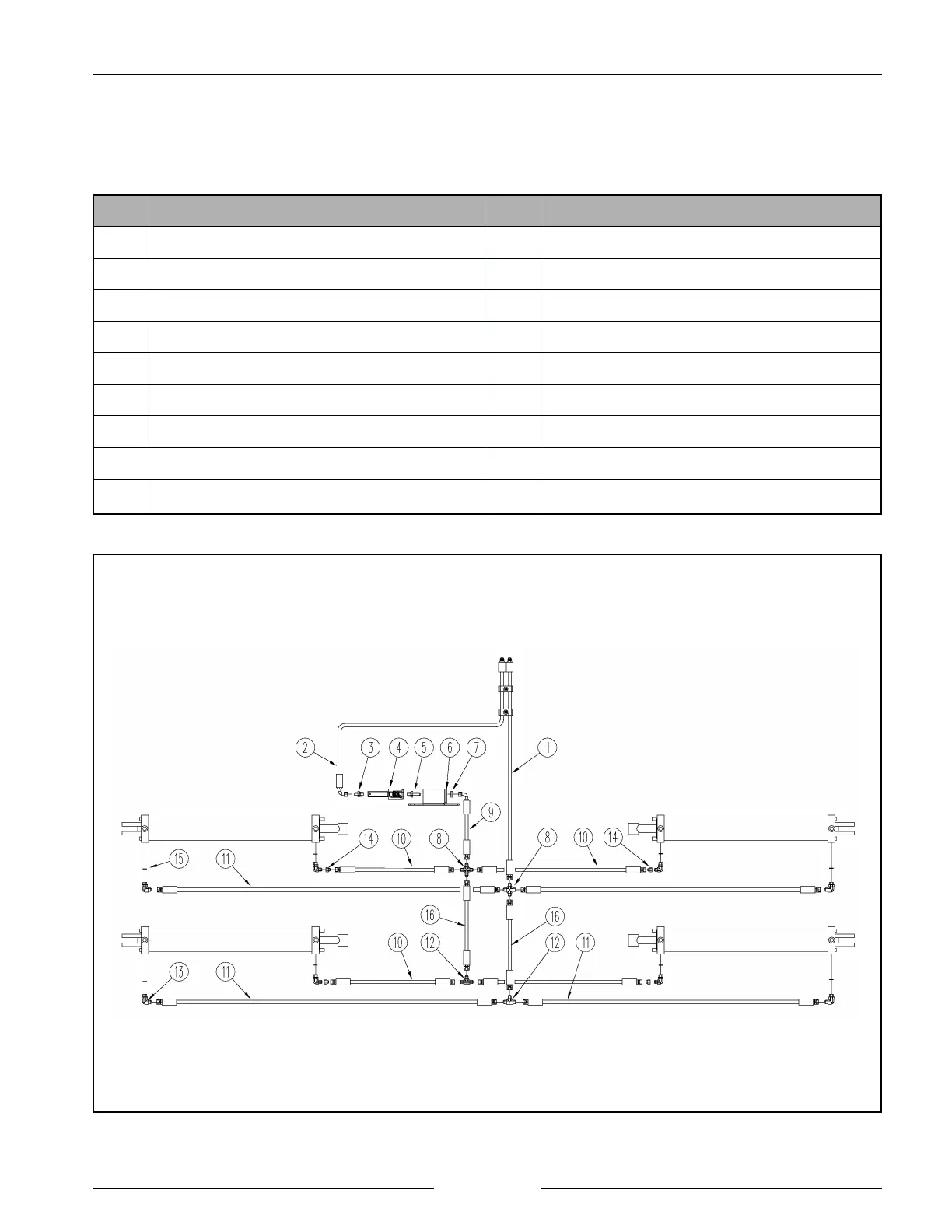

WING LIFT HYDRAULIC SCHEMATICS
SDX30 WING LIFT HYDRAULICS, 1
st
SERIAL RANGE - up to Serial Number CKB0028188
REF DESCRIPTION REF DESCRIPTION
CYLINDER ASSY. HYD 4.00 X 30.0 IOWA 9 HOSE ASSY. HYD .375 X 26 FL
1 HOSE ASSY. HYD .375 X 215 FL 10 HOSE ASSY. HYD .375 X 126 FL
2 HOSE ASSY. HYD .375 X 200 FL 11 HOSE ASSY. HYD .375 X 144 FL
3 ADAPTER TMK#2404-8-8 12 TEE FIT STL .5MJ
4 VALVE /A BALL 13 FITTING STL 90DEG .5MB .5MJ
5 FITTING STL .5MP .5MJ BULKHD YZD 14 FITTING STL .5MJ .5FJ RESTRICTOR
6 BRACKET VALVE MOUNT PNT 15 O-RING 1/2 OD TUBE CLASS 6
7 NUT LOCK BULKHEAD .75-16 YZD 16 HOSE ASSY. HYD .375 X 90 FL
8 CROSS FIT STL .5MJ
SDX30 Wing Lift Hydraulics
