Case SDX30 - SDX40 Subbar Cylinder

SECTION 3 - HYDRAULIC SYSTEM SERVICE
page 3-13

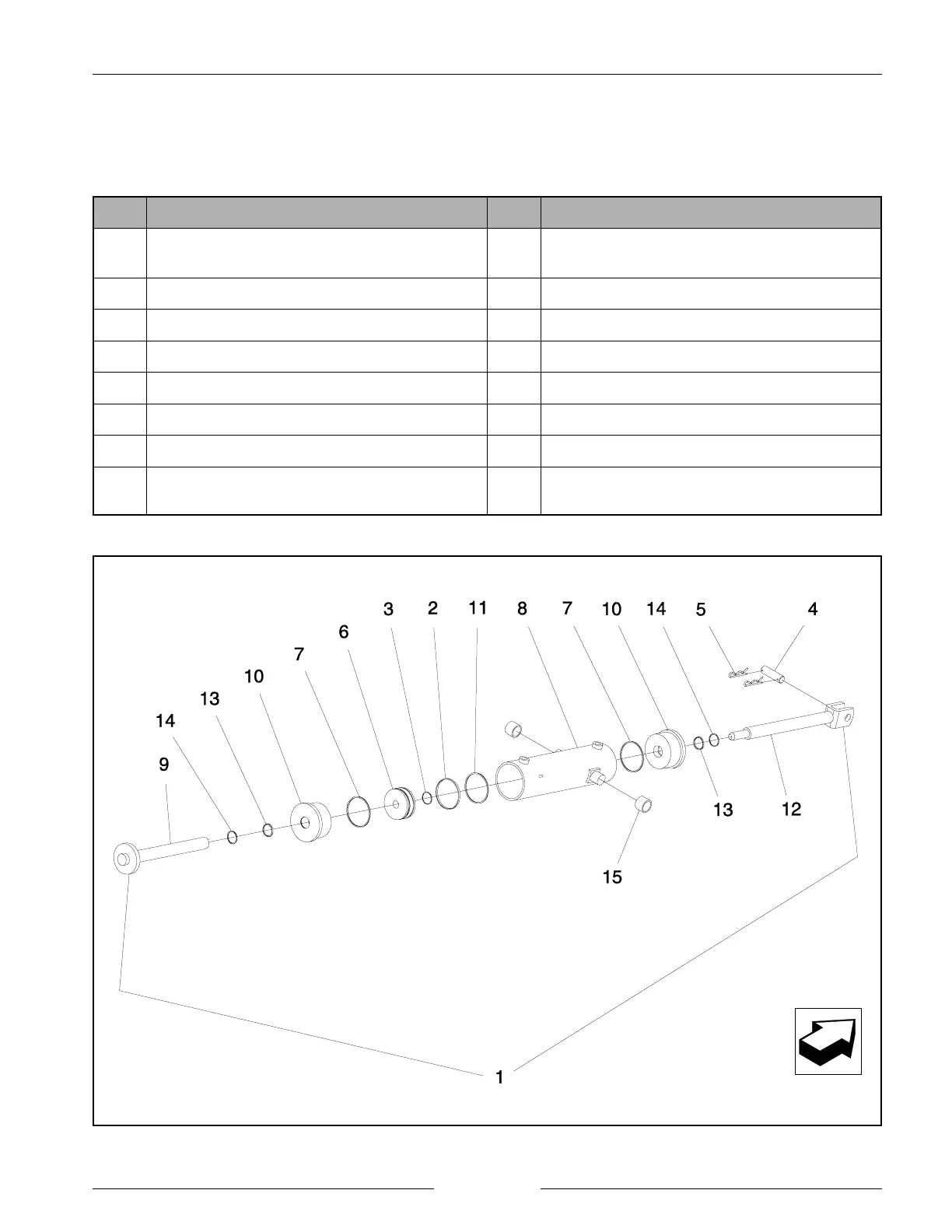

SDX40 Subbar Hydraulic Cylinder
202217C
SDX40 SUBBAR CYLINDER
NOTE: Can either be a 4" x 12" (for 15" spacing) or 4.5" x 12" (for 7.5" and 10" spacing) cylinder.
REF DESCRIPTION REF DESCRIPTION
1 CYLINDER ASSY. HYD 4.5 X 12 MONARCH
PNTD
9 ROD ASSY. PISTON COLLAR
2 RING - wear 10 PLATE, END CYL HEAD 4.5 CTD
3 O-RING 11 O-RING
4 PIN CYL 1 X 2.41 UL YZD 12 CLEVIS
5 CLIP HAIRPIN .177 X 3.25 13 SEAL - rod
6 PISTON CYL 4.5 X 12 CTD 14 SEAL - wiper
7 O-RING 15 BUSHING 1.5 IDX1.75 ODX1.25LG
8 TUBE CYL TUBE ASSY 4.5 X 12 CTD 100 KIT, SEALS CYL 4.5 X 12 CTD (Includes 2, 3,
7, 11, 13 and 14)
Hydraulic Cylinder Parts for 4" x 12" Cylinder
