Case SDX30 - Wing Lift Ball Valve

SECTION 3 - HYDRAULIC SYSTEM SERVICE
page 3-18

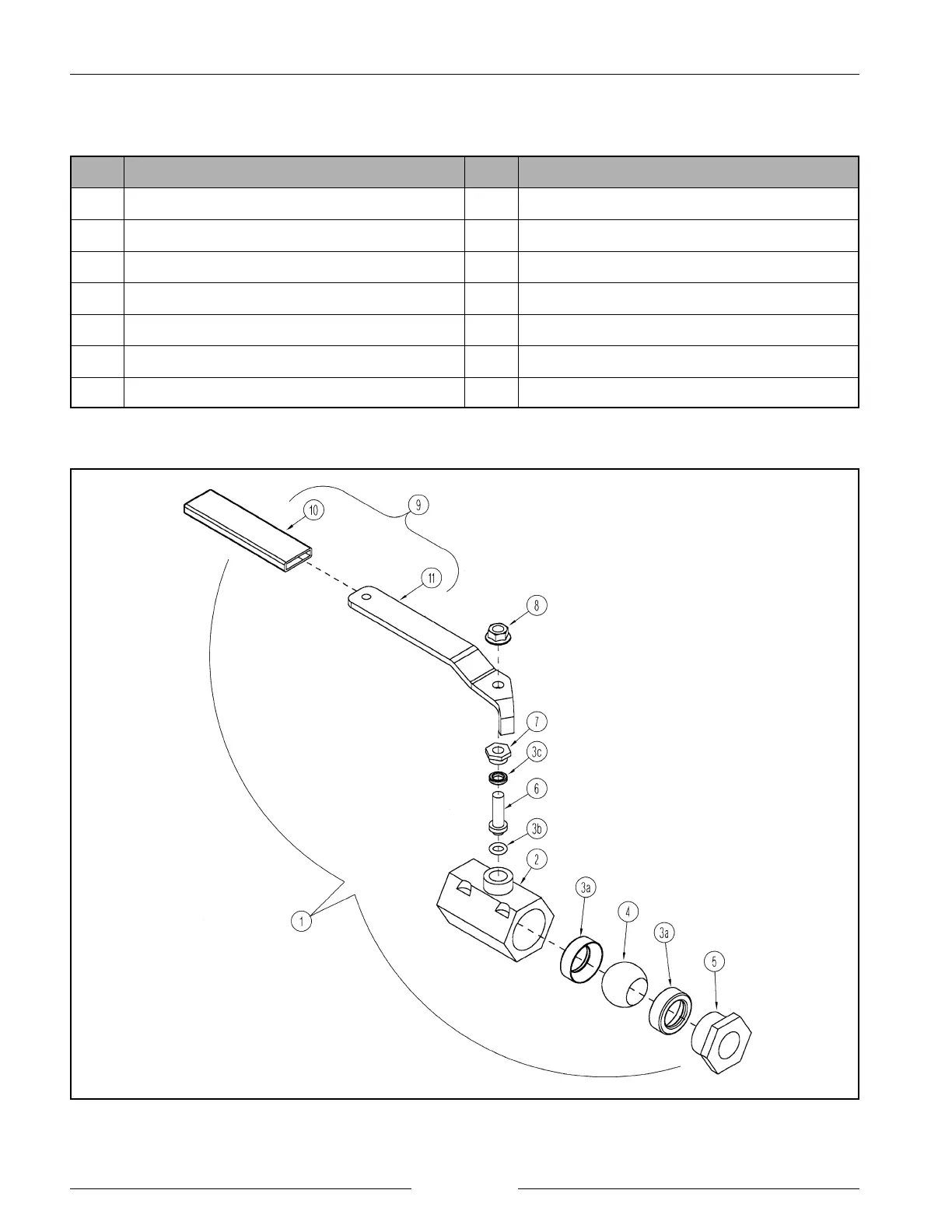

Wing Lift Ball Valve Components
210210S
WING LIFT BALL VALVE
REF DESCRIPTION REF DESCRIPTION
1 VALVE /A BALL 5 RETAINER
2 SEPARATE BODY 6 STEM
3 KIT SEAL 7 SCREW - STEM GLAND
3A SEAT - TFE 8 NUT, LOCK .312-18 SER FLNGE GR.5 ZND
3B SEAL - TFE THRUSTWASHER 9 HANDLE VALVE
3C RING - TFE STUFFING BOX 10 GRIP HANDLE VINYL 1 X 1.88 X3.88LG
4 BALL 11 HANDLE - BALL VALVE
Wing Lift Ball Valve Components
