Case SDX30 - Hydraulic Cylinder Components; SDX30 Subbar Cylinder

SECTION 3 - HYDRAULIC SYSTEM SERVICE
page 3-12
SDX30 Subbar Hydraulic Cylinder
202217C

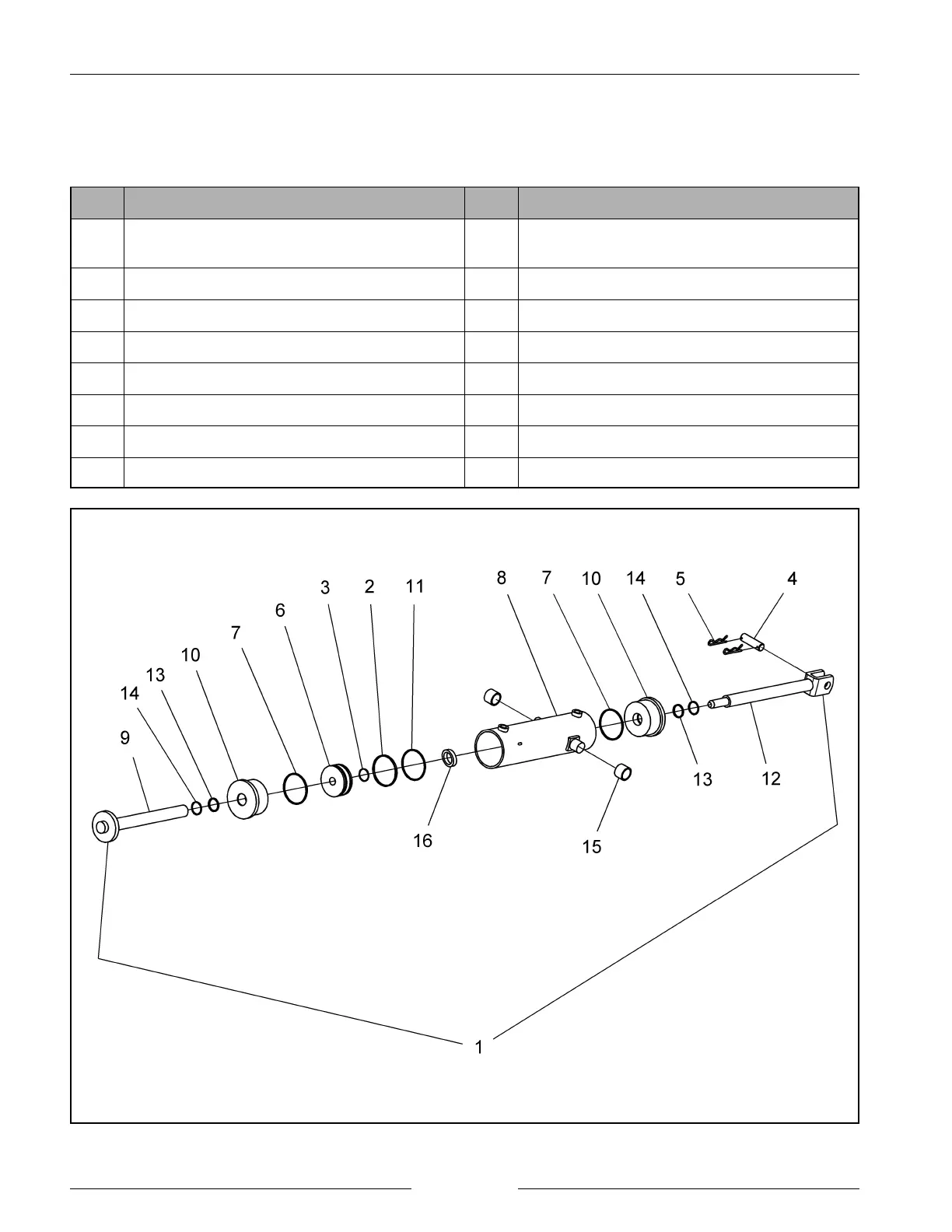

HYDRAULIC CYLINDER COMPONENTS
SDX30 SUBBAR CYLINDER
REF DESCRIPTION REF DESCRIPTION
CYLINDER 4X12 3000PSI W/ 1 PIN
MONARCH
9 ROD, PISTON, 1 1/2"
2 WEAR RING 10 CYLINDER HEAD
3 O-RING 11 O-RING
4 PIN, 1 X 2.41 UL YZD 12 ROD, PISTON, 1 1/2"
5 CLIP, HAIRPIN, .177" x 3.25" 13 SEAL - ROD
6 PISTON CYLINDER 14 SEAL - WIPER
7 O-RING 15 BUSHING
8 TUBE 16 STOP TUBE
SDX30 Subbar 4" x 24" Cylinder
