SDX40 Center Section Assembly
202013C

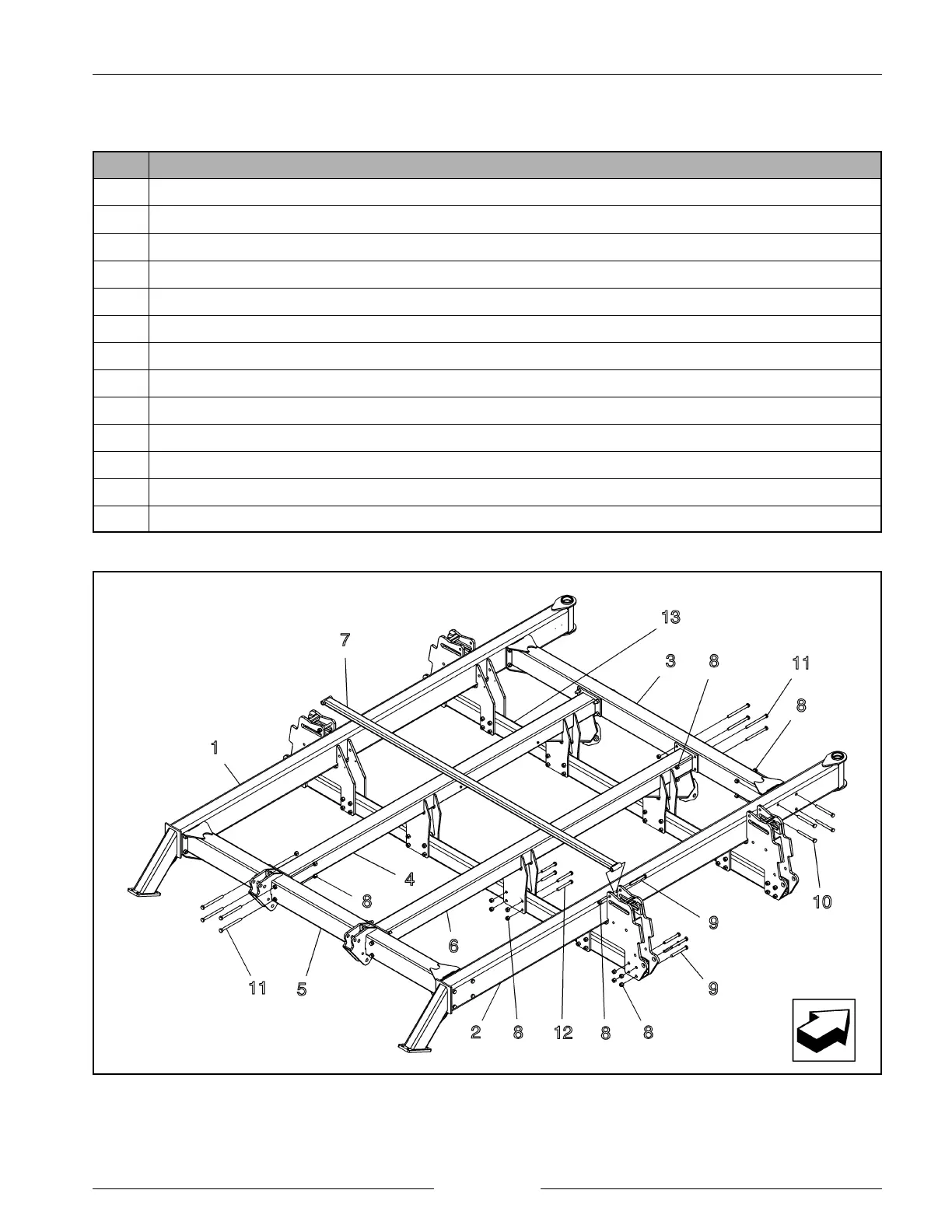

SDX40 CENTER SECTION ASSEMBLY
REF DESCRIPTION
1
TUBE TRUSS/W MAIN FRAME LH - 40 FT (Includes bronze bushings)
2
TUBE TRUSS/A MAIN FRAME RH - 40 FT (Includes bronze bushings)
3
TUBE FRONT CROSS
4
TUBE, SUPPORT TRUSS/W CENTER HITCH LH
5
TUBE REAR CROSS
6
TUBE TRUSS/W CENTER HITCH RH
7
TUBE, SUPPORT TIE ROD
8
NUT, LOCK .75 UNC GR C YZD
9
BOLT .75 X 6.5 UNC GR8 YZD
10
BOLT .75 X 7.5 UNC GR8 YZD
11
BOLT .75 X 9.0 UNC GR8 YZD
12
BOLT .75 X 6 UNC GR8 YZD
13
TUBE, SUPPORT MAIN GANG 40FT
