SECTION 2 - MECHANICAL SERVICE
page 2-22

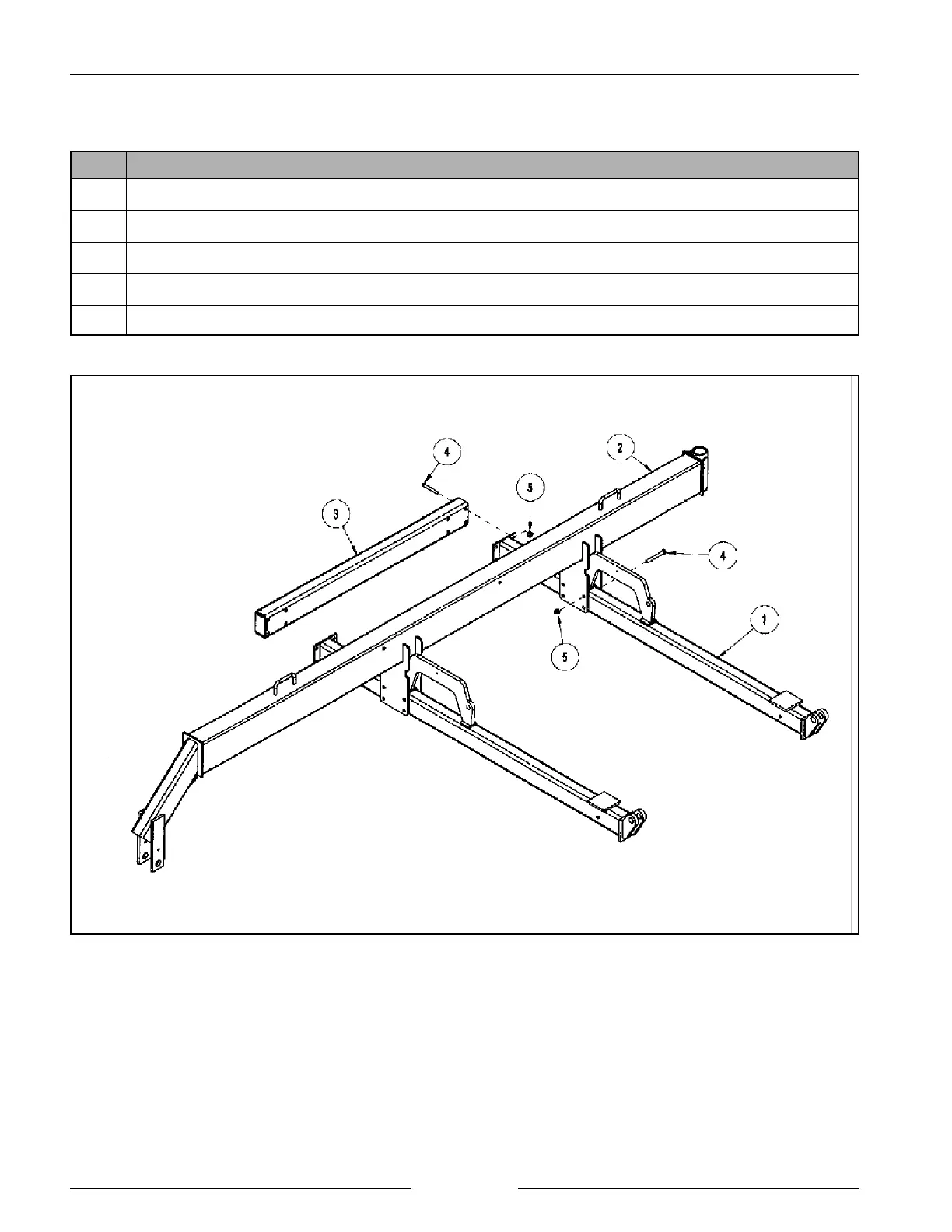

SDX30 Wing Frame Assembly
202360C
SDX30 WING FRAME ASSEMBLY
REF DESCRIPTION
1 TUBE /W WING 30 FT
2 TUBE, SUPPORT TRUSS/W WING
3 TUBE /W WING END
4 BOLT .75 X 6 UNC GR8 YZD
5 NUT, LOCK .75 UNC GR C YZD
SDX30 Wing Frame Assembly
