SECTION 4 - ELECTRICAL SYSTEM SERVICE
page 4-4

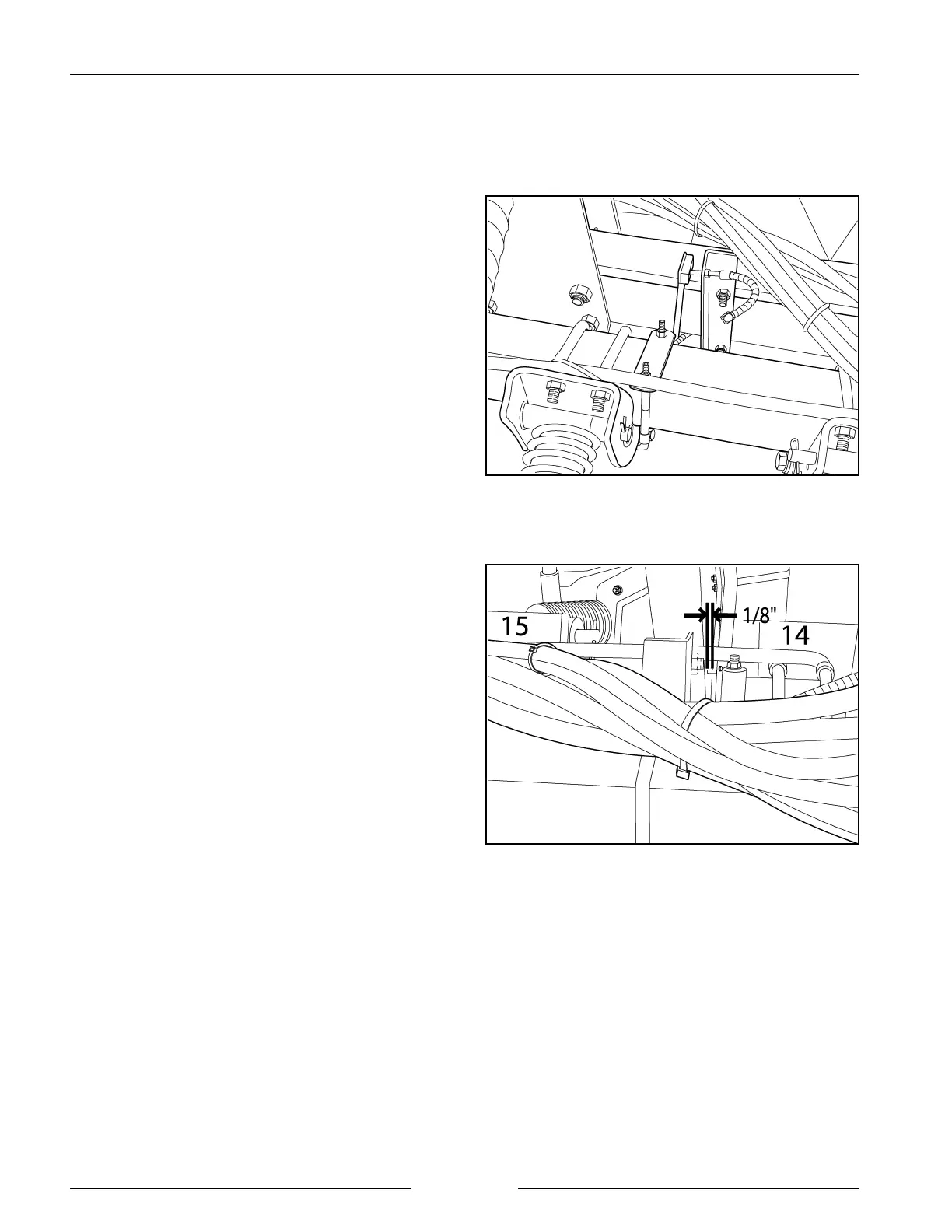

Concord Air System SDX30 Remote Clutch
mk99n301
Check Gap Between Switch and Magnet
204153S
CLUTCHES AND WORK SWITCH
REMOTE CLUTCH - For SDX30 Drills Used with Concord Air Systems
A remote clutch attachment is available for the SDX30
drill. This attachment automatically engages the air system
meter clutch when the openers are lowered into the ground
and disengages the clutch when the openers are raised out
of the ground.
Adjusting the position of the sensor in the bracket will
change the timing when the clutch is engaged or
disengaged. The sensor should be adjusted so the clutch
is disengaged when the subbars are lowered onto the
channel locks.
For proper operation, the distance between the magnet and
switch should be 3 mm (1/8") (1). The brackets or
sensor/switch must be adjusted to obtain the 3 mm (1/8")
gap. Tighten the switch and bracket nuts.
If the drill is going to be used with one rank locked up, the
remote clutch switch must be located on the rank to be
used. The harness extension (P/N 1030499) may be
needed to connect the sensor to the harness if the remote
clutch switch is assembled on the rear rank.
AFS Air Systems require the use of a remote clutch switch
and include it as standard equipment. The AFS tillage
harness has remote clutch connectors for both ranks. Be
sure to plug the connector that is not being used.
