SECTION 2 - MECHANICAL SERVICE
page 2-3
DANGER!
CAUTION!
Hydraulic Fitting Identification
GENERAL SERVICE INFORMATION
Be alert for overhead electrical wires. Failure to
stay clear of electrical wires will result in
electrocution. Electrocution can occur without
direct contact with overhead electrical wires.
To prevent personal injury when assembling the
implement, always block up the raised section.
Be sure the section is stable before assembly and
never rely on a jack or hydraulic device to support
the raised implement.
Always make sure that pressure is relieved from
hydraulic circuits before servicing or disconnecting
from the tractor. Failure to do so may result in
hydraulic fluid being injected into the skin; this
may result in gangrene.
1. Be sure to read and follow all instructions to ensure
proper assembly and operation of the implement.
2. Disassembly and assembly may require the use of a
forklift or other suitable lifting device.
3. Implement must be serviced on a flat surface.
4. Left and right directions are determined from the rear
of the implement facing the direction of forward travel.
NOTE: If you are assembling or servicing the
implement inside of a building, ensure the door
opening is large enough to allow the
implement to be removed after assembly.
Check the Operator's Manual for the overall
height and width in transport position.
5. Use a suitable sealant on hydraulic connections. Be
careful to prevent sealant from entering the hydraulic
system.
6. Apply a thread sealant to all female-to-male pipe
thread connections.
7. Do not allow tape to enter the hydraulic system.
8. Do not use a thread sealant on ORB or swivel fitting
connections.

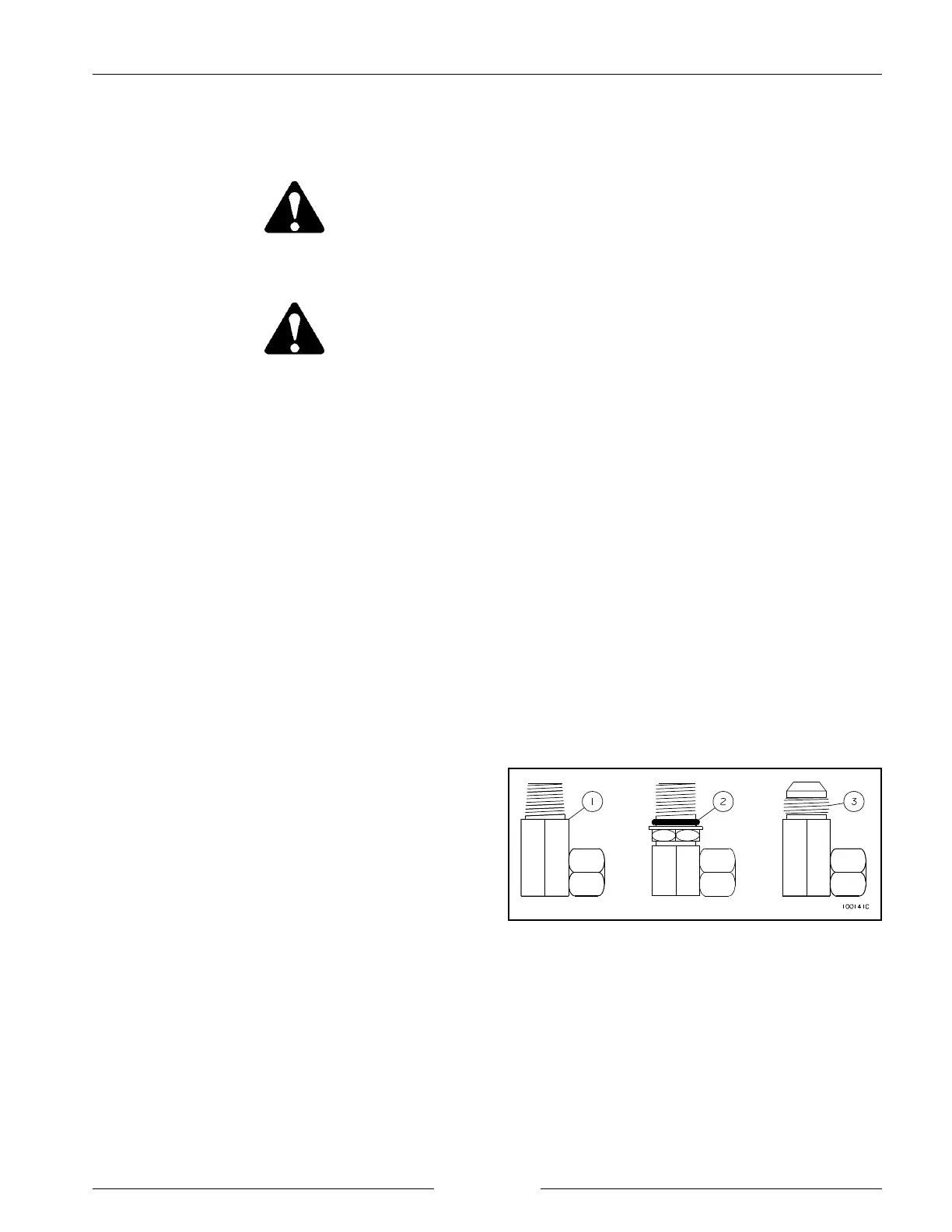

NOTE: Pipe thread (1) fittings, o-ring boss fittings (2)
and JIC fittings (3) may be the types of
hydraulic fittings used.
