Case SDX30 - Primary Manifold

SECTION 6 - AIR SYSTEM SERVICE
page 6-15

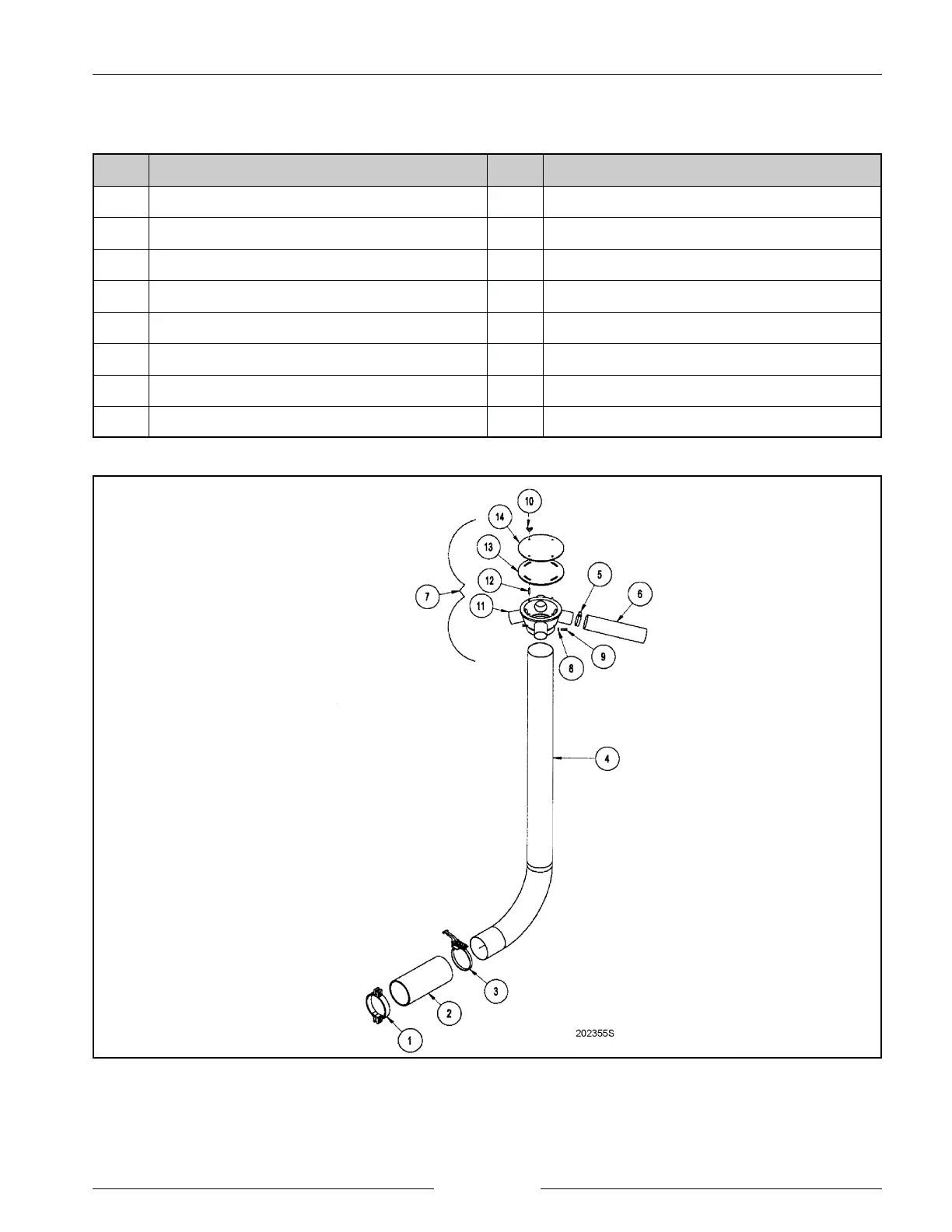

Primary Manifold Parts
202355C
PRIMARY MANIFOLD
REF DESCRIPTION REF DESCRIPTION
1 CLAMP HOSE #600 5.00-5.75 YZD 7 COVER MANIFOLD PRIM 4PRT 2.50
2 HOSE 5.0 ID PVC BLACK BULK 8 NUT JAM .25 UNC GR5 YZD
3 CLAMP 9 BOLT .25 X 1 UNC GR8 YZD
4 TUBE PRIMARY MANIFOLD 10 NUT WING .25 UNC YZD
TUBE PRIMARY SS 11 COVER MANIFOLD PRIM 4PRT 2.50
5 CLAMP HOSE #44 - STAINLESS 12 SCREW SET .25-20X1.25HL HX SKT
6 HOSE PVC-B 2.50 ID BLACK BULK 13 CUSHION GASKET NEOPRENE 9 OD BLK
HOSE BULK 2.5 ID 50' ROLL 14 COVER MANIFOLD PRIMARY 9 OD
Primary Manifold Parts
