SECTION 5 - OPENER SERVICE
page 5-17

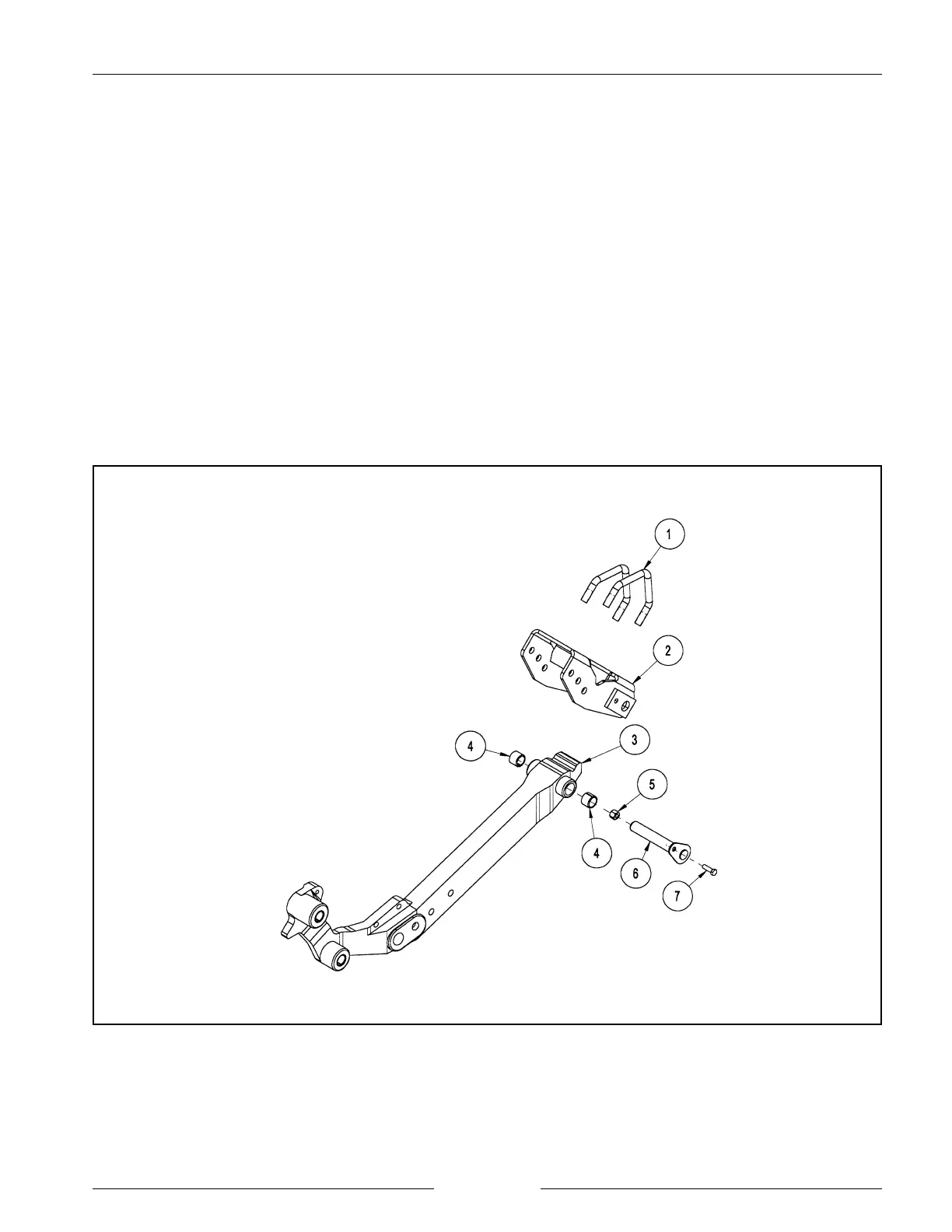

Service Main Cast Arm Bushings
202293S
MAIN CAST ARM BUSHINGS
To maintain or repair the main cast arm bushings:
1. Ensure all components are free of foreign materials
such as dirt, straw or fertilizer.
2. Remove bolt (7) and pivot pin (6) from main cast arm
(3).
3. Remove bushings (4) from main cast arm (3).
4. Replace bushings (4) and pin (6) if required.
5. Install pin retaining hardware (7) and torque to 48 N-m
(35 lbf-ft).
