Case SDX30 - Page 76

SECTION 3 - HYDRAULIC SYSTEM SERVICE
page 3-15

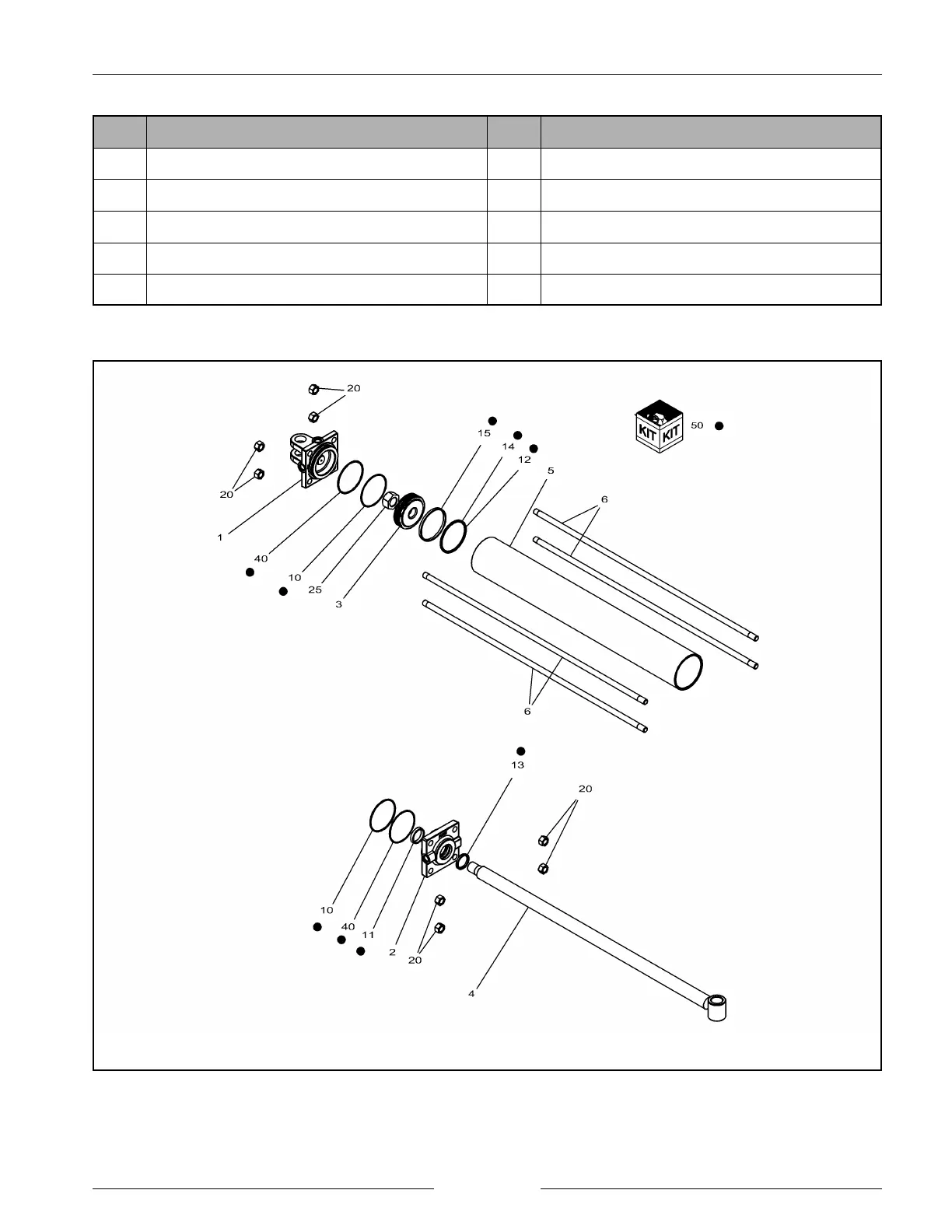

SDX30 Wing Lift Hydraulic Cylinder Components
645548
REF DESCRIPTION REF DESCRIPTION
CYLINDER 4X12 3000PSI W/ 1 PIN MON 5 CYLINDER TUBE
1 HEAD 6 BOLT
2 HEAD 20 NU, 5/8"
3 PISTON 25 NUT, LOCK, 1 1/8"
4 ROD 27 PLUG, 3/4"
SDX30 Wing Lift Hydraulic Cylinder Components
