Case SDX30 - Page 42

SECTION 2 - MECHANICAL SERVICE
page 2-19

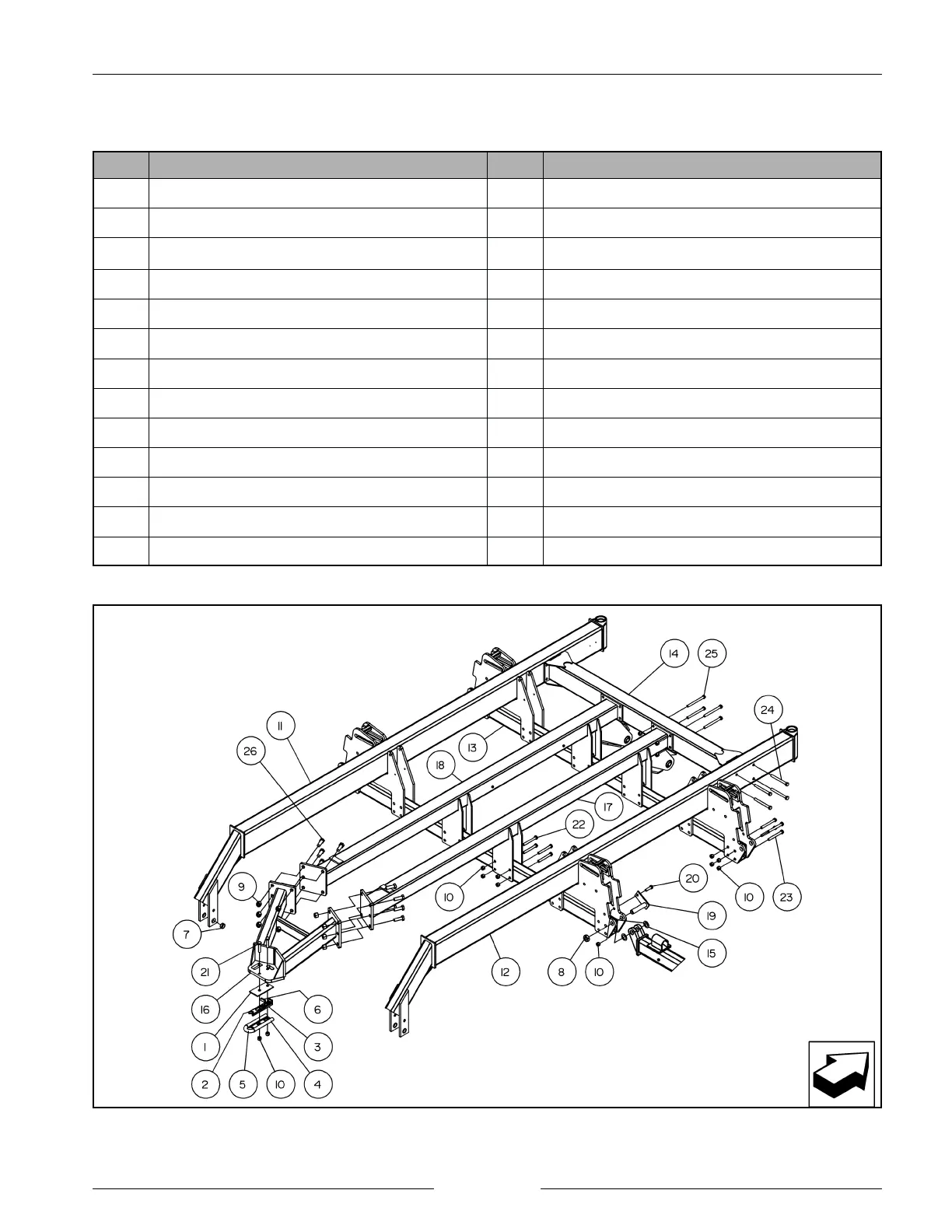

SDX30 Main Frame Assembly Showing Concord Hitch - 2
nd
Serial Range
201065C
2
nd
Serial Range with Concord Hitch - Starting with Serial Number CBJ0007001
REF DESCRIPTION REF DESCRIPTION
1 PLATE TOP RED 14 TUBE, SUPPORT /W CROSS
2 BLOCK V RED 15 WASHER 1.515 ID 2.5 14GA YZD
3 PLATE ANGLE BRACKET RED 16 HITCH ASSY WITH REAR
4 HITCH ASSY BASE RED 17 TUBE, SUPPORT TRUSS/W /HITCH RH
5 HITCH ASSY TONGUE (Includes 1, 2, 3 and 4) 18 TUBE, SUPPORT TRUSS/W HITCH LH
6 CUSHION HITCH PPI-205H PLN 19 PIN, PIVOT 1.5OD X 5.630UL YZD
7 BUSHING TNSN 1.75 OD 1.5 ID 20 BOLT .75 X 2.5 UNC GR5 YZD
8 NUT LOCK JAM 1.5-6 THIN YZD 21 BOLT .75 X 3.5 UNC GR8 YZD
9 NUT, LOCK 1 UNC GR B YZD 22 BOLT .75 X 6 UNC GR8 YZD
10 NUT, LOCK .75 UNC GR C YZD 23 BOLT .75 X 6.5 UNC GR8 YZD
11 SUPPORT TRUSS/W MAIN FRAME LH 24 BOLT .75 X 7.5 UNC GR8 YZD
12 SUPPORT TRUSS/W MAIN FRAME RH 25 BOLT .750 X 8.0 GR8 ZND
13 TUBE .375 X 4 X 6 W/ HOLES PTD 26 BOLT 1 X 3 UNC GR8 YZD
SDX30 Main Frame Assembly Showing Concord Hitch - 2
nd
Serial Range
