Case SDX30 - Page 157

SECTION 7 - ENDMARKER SERVICE
page 7-6

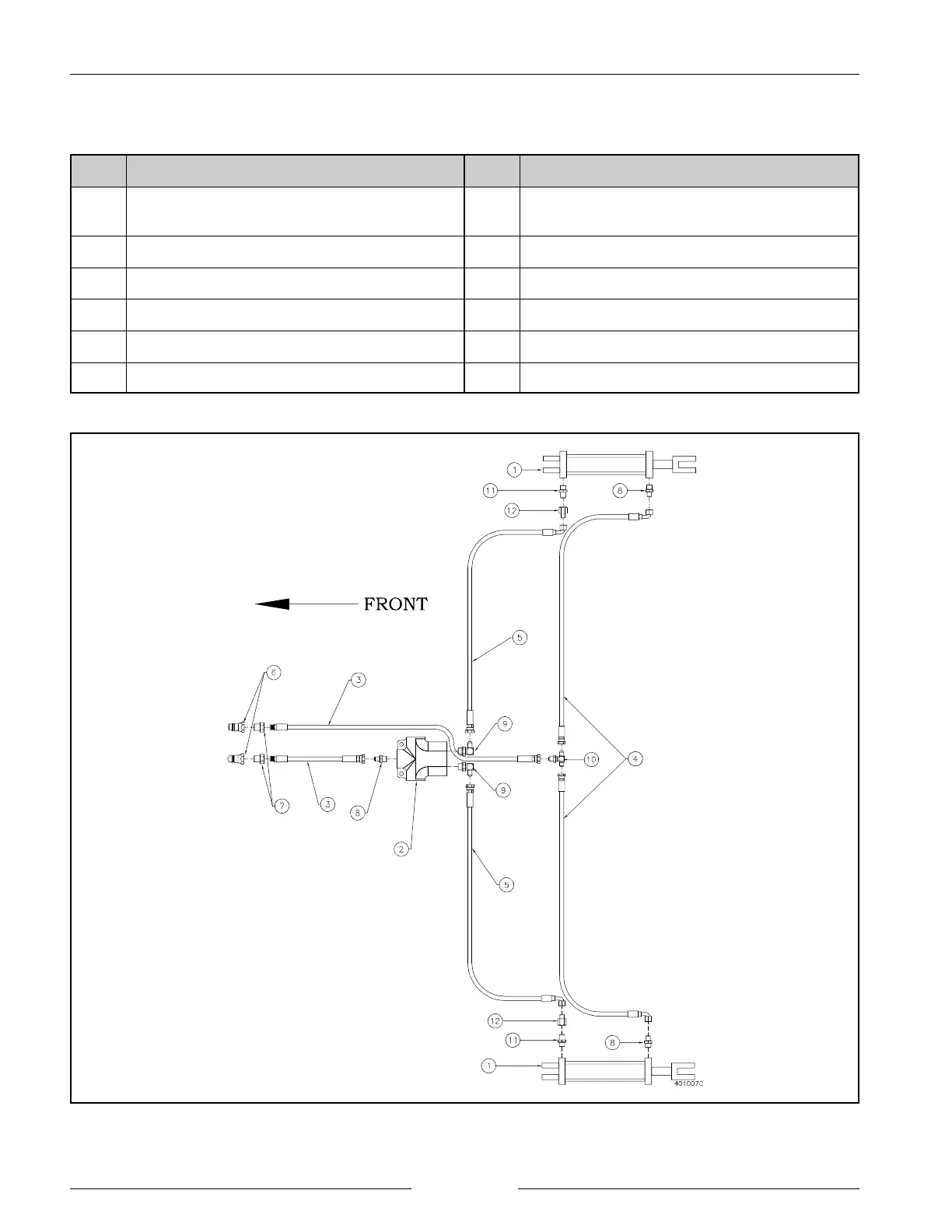

SDX30 Endmarker Hydraulic Schematic
ENDMARKER HYDRAULICS
REF DESCRIPTION REF DESCRIPTION
1 CYLINDER ASSY. 2 X 12 MON 3000PSI
W/PINS
7 FITTING STL RB .5MP .375FP
2 VALVE HYD SEQUENCE 2 WAY 8 CONNECTOR FIT STL .5MB .375MJ ADTR
3 HOSE ASSY. HYD .25 X 198 FL 9 ELBOW FIT STL 90DEG .5MB .375MJ
4 HOSE ASSY. HYD .25 X 277 FL 10 FITTING STL T .375MJ BULKHD
5 HOSE ASSY. HYD .25 X 261 FL 11 FITTING STL T .5MB .5MJ RES 0.0625
6 FITTING PIO CPLR .5MP .375FP 12 FITTING, REDUCER STL .375MJ .5FJ
Endmarker Hydraulic Components
