SECTION 7 - ENDMARKER SERVICE
page 7-17

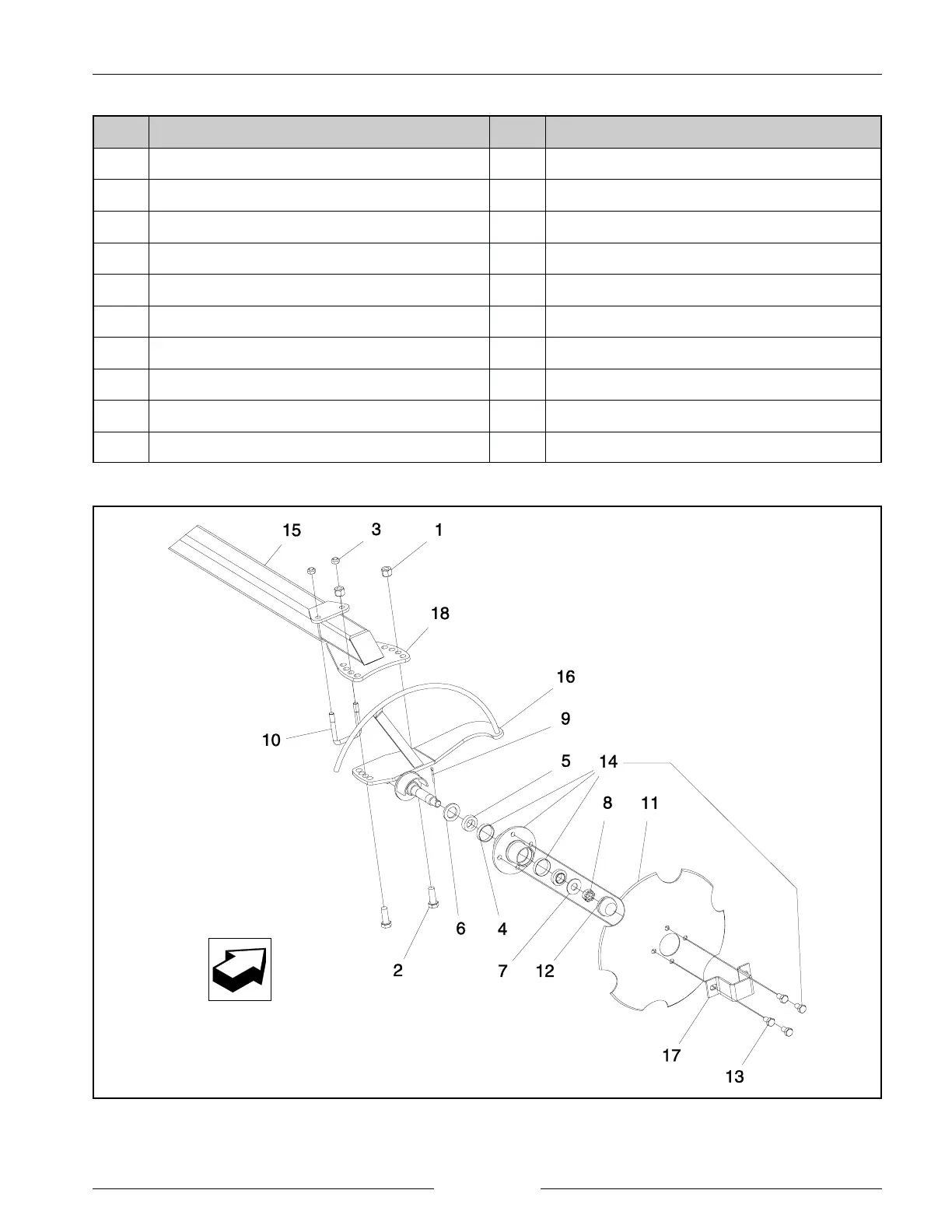

Endmarker Hub and Disc Assembly
202086C
REF DESCRIPTION REF DESCRIPTION
1 NUT, LOCK .625 UNC GR B YZD 11 DISC 16'' CONCAVE NOTCHED
2 BOLT .625 X 1.75 UNC GR5 YZD 12 CAP HUB DC11 YZD
3 NUT, LOCK .5 UNC GR B YZD 13 SCREW WHEEL .5 UNF GR5 WB96
4 BEARING, CUP #L44610 14 HUB ASSY. H211 C/W CUPS &BOLTS PNTD
5 BEARING, CONE TM#L44643 15 BOOM SWING 20' ENDMARKER
6 OIL-SEAL HUB <SE10> 16 GUARD DISK PROTECTOR RT (Not Shown)
7 WASHER SPINDLE WA10 .75 ID 16 GUARD DISK PROTECTOR LT (Shown)
8 SLOTTED NUT .75-16UNF GR2 PLN 17 PROTECTOR DUST CAP
9 PIN, SPLIT (COTTER) .156 X 1.25 YZD 18 EXTENSION ASSY. ARM ENDMARKER
10 BOLT "U" US .5 2.562W 3.5D
Endmarker Hub and Disc Assembly
To Next Page
