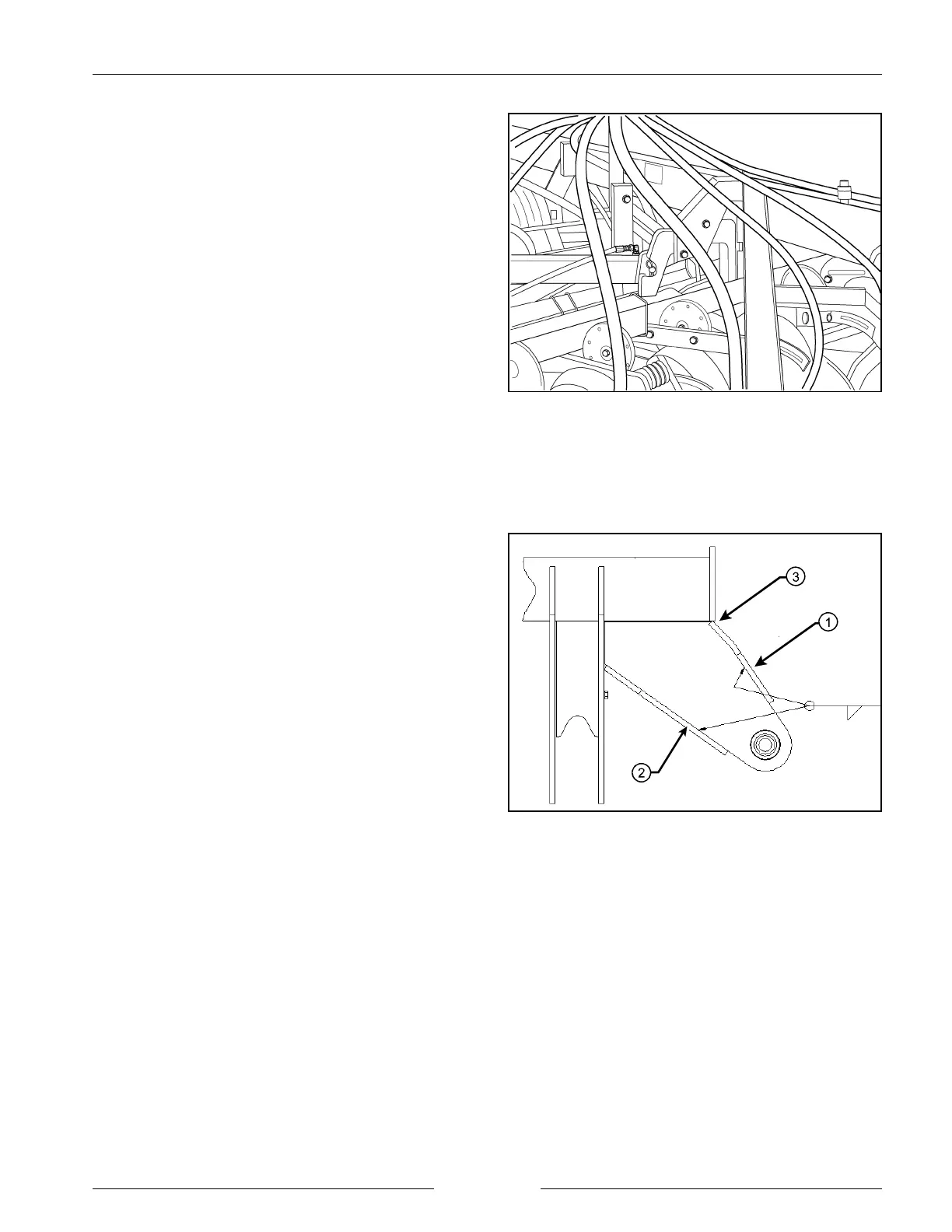

Install Tube Wing Brace
202346M1
Pull Point Gusset Welding
202347M1
3. Install the tube wing brace (P/N 425010A1) onto the
two brackets assembled in step 1 and 2.
- Install 1" x 3 1/2" bolts and nuts. Refer to step 2
for installation view if needed. Torque to 280 N-m
(205 lbf-ft).
Repeat steps 1 to 3 for installing brackets on right hand
wing.
4. Gusset installation instructions for pull points for front
drawpole.
- Tack gussets (1) and (2) in place as shown below.
Gussets should be tacked on both pull points on
the frame where the front hitch pins to.
- Weld all around flame cut and gusset, except
where no weld shown (3). Use 1/2" weld size.
NOTE: Pull Point Gusset Kit
Part Numbers
425005A1
425006A1
425007A1
To Next Page
