SECTION 3 - HYDRAULIC SYSTEM SERVICE
page 3-8
Replace Piston in Cylinder
202044M1
Replace End Cap
202043M1
Replace Clevis and Rod Cap
202042M1

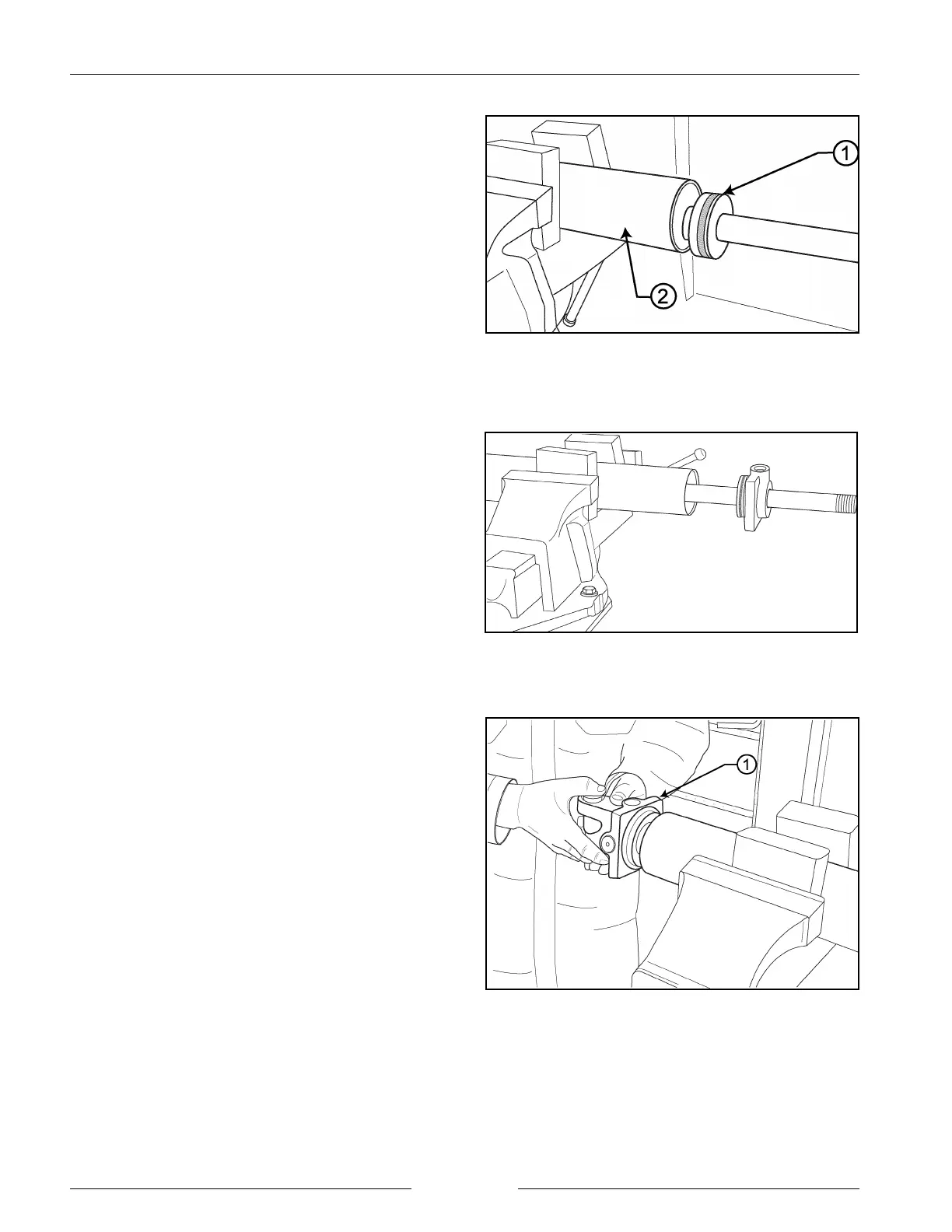

17. Replace the piston (1) into the cylinder barrel (2).
Piston inserted into the cylinder barrel (below).
18. Inserting piston rod cap assembly into the cylinder.
19. Replace clevis cap and rod cap (1) back onto the
cylinder. Rotate caps and align fluid connection ports.
