SECTION 3 - HYDRAULIC SYSTEM SERVICE
page 3-10

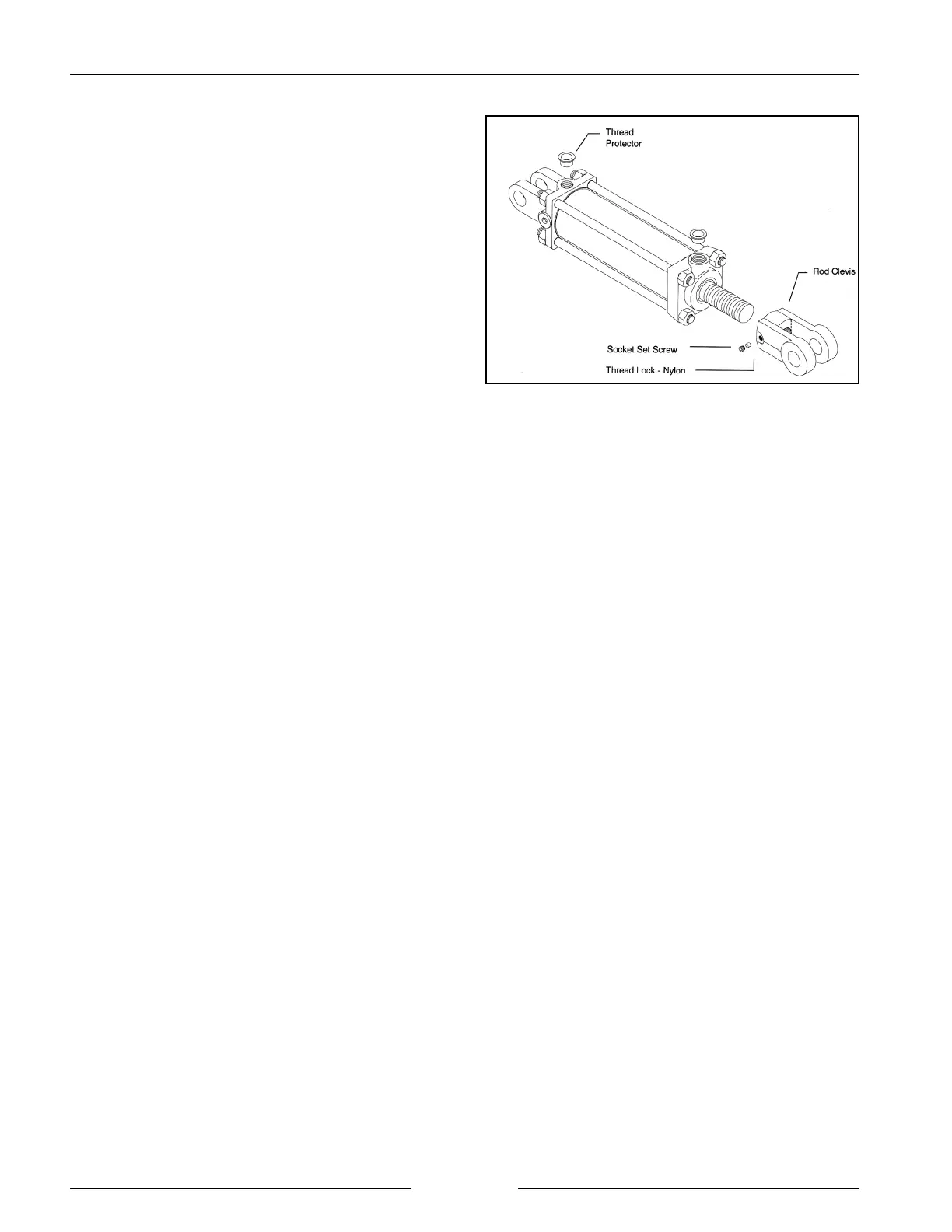

Rod Clevis Assembly
202159S
22. Install rod clevis, visually inspect to see if the rod
clevis is square and aligned to the center line of the
cylinder. The set screw should be in the center of the
casting. Rod clevis must thread freely; don’t force rod
clevis to thread to position.
Install nylon thread lock and set screw. Torque set
screw to 30 +/- 5 N-m (22 +/- 4 lbf-ft). This is a
critical parameter to ensure the rod clevis will not
work itself loose while in operation.
