Cisco ASR 9000 Series Configuration Guidelines

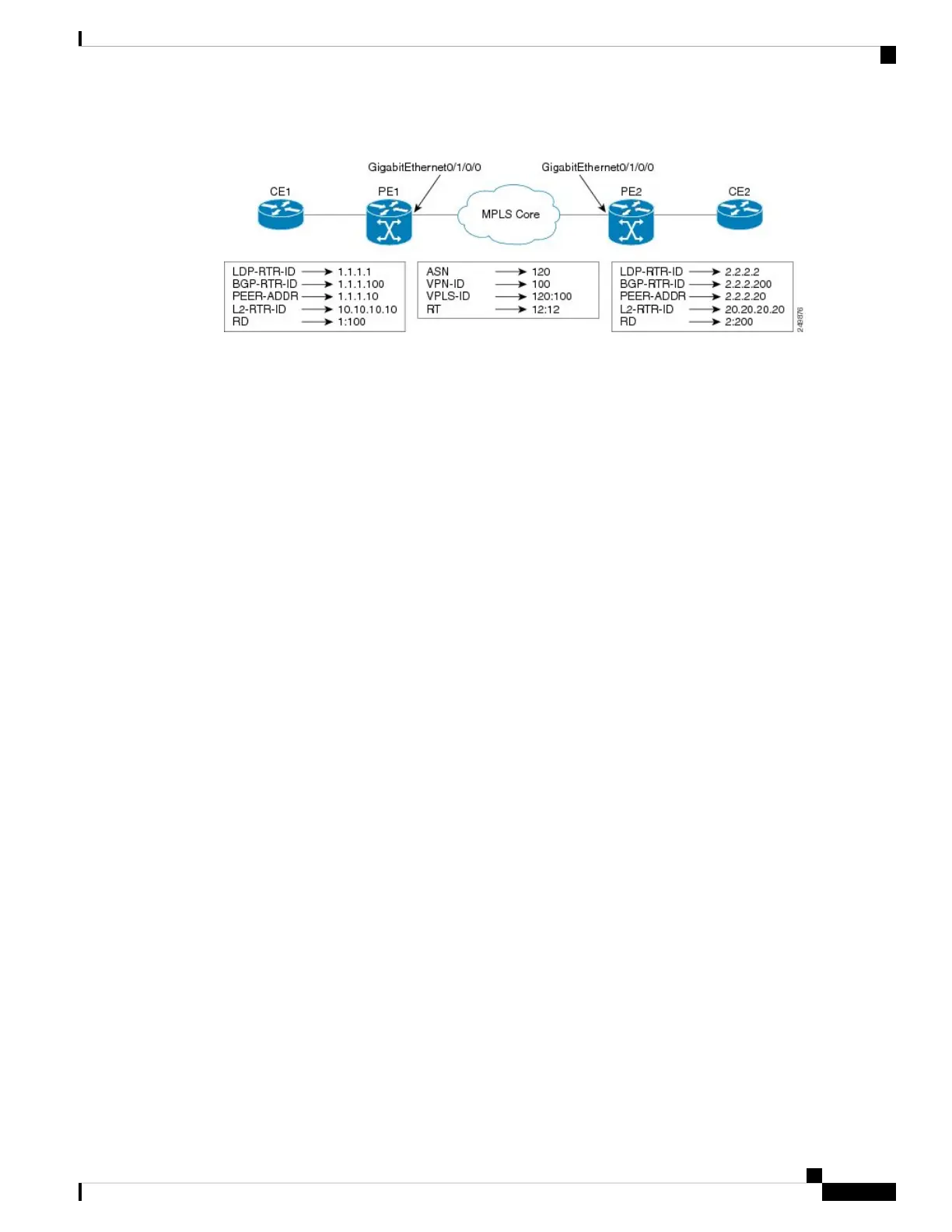

Discovery and Signaling Attributes
Configuration at PE1:
LDP Router ID - 1.1.1.1
BGP Router ID - 1.1.1.100
Peer Address - 1.1.1.10
L2VPN Router ID - 10.10.10.10
Route Distinguisher - 1:100
Common Configuration between PE1 and PE2:
ASN - 120
VPN ID - 100
VPLS ID - 120:100
Route Target - 12:12
Configuration at PE2:
LDP Router ID - 2.2.2.2
BGP Router ID - 2.2.2.200
Peer Address - 2.2.2.20
L2VPN Router ID - 20.20.20.20
Route Distinguisher - 2:200
Discovery Attributes
NLRI sent at PE1:
Source Address - 1.1.1.10
Destination Address - 2.2.2.20
Length - 14
Route Distinguisher - 1:100
L2VPN Router ID - 10.10.10.10
VPLS ID - 120:100
Route Target - 12:12
NLRI sent at PE2:
Source Address - 2.2.2.20
Destination Address - 1.1.1.10
Length - 14
Route Distinguisher - 2:200
L2VPN Router ID - 20.20.20.20
L2VPN and Ethernet Services Configuration Guide for Cisco ASR 9000 Series Routers, IOS XR Release 6.3.x
339
Implementing Multipoint Layer 2 Services
VPLS with BGP Autodiscovery and LDP Signaling
