Cisco ASR 9000 Series Configuration Guidelines

CHAPTER 12
Configure EVPN IRB
This chapter introduces you to Ethernet VPN (EVPN) Integrated Routing and Bridging (IRB) feature and
describe how you can configure the EVPN IRB feature.
• EVPN IRB , on page 585
• EVPN Single-Homing Access EVPN Gateway , on page 586
• EVPN Multi-Homing Active-Active, on page 586
• EVPN IRB Support, on page 587
• Distributed Anycast Gateway, on page 587
• VM Mobility Support, on page 589
• Configuring EVPN IRB, on page 589
• Running Configuration for EVPN IRB, on page 590
• Verify EVPN IRB, on page 592
• EVPN IPv6 Hosts with Mobility, on page 601
• EVPN IRB: DHCPv4 and DHCPv6 Relay , on page 612
EVPN IRB
Ethernet VPN (EVPN) provides an extensible and flexible multi-homing VPN solution for Layer 2 connectivity
among hosts over an MPLS core/IP network. EVPN Integrated Routing and Bridging (IRB) feature enables
Layer 3 forwarding among hosts across different IP subnets, while maintaining the multi-homing capabilities
of EVPN. Also, EVPN IRB feature enables EVPN hosts or subnets to communicate with IP VPNs.

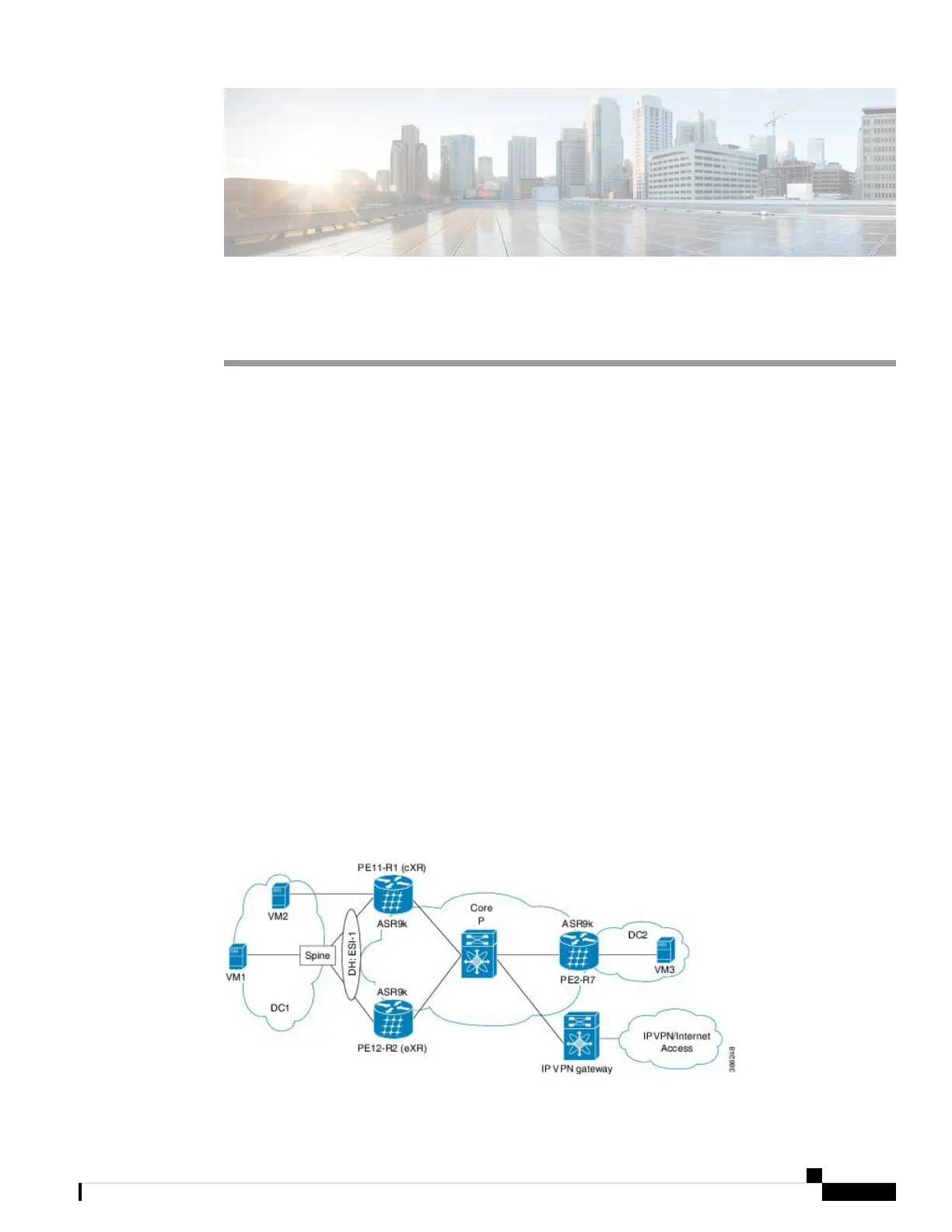

Figure 84: EVPN IRB
L2VPN and Ethernet Services Configuration Guide for Cisco ASR 9000 Series Routers, IOS XR Release 6.3.x
585
