However, if you have not configured mac withdraw state-down, then MIRP packets are sent when the attachment
circuit is functional.
Configuring PBB-EVPN: Example
This section provides examples for:
PBB-EVPN on Single Homed Device/Single Homed Network
This example covers:
• PBB-EVPN service between two PEs in the same AS with single homed CEs
• Dual attached CE using a bundle interface connected to PE1.
• Single attached CE connected to PE2
• EVI carrying traffic from single I-SID
• PBB source MAC customized via configuration on both PEs for easier tracking
• BGP RD/RT auto-derived from BGP ASN and EVI ID

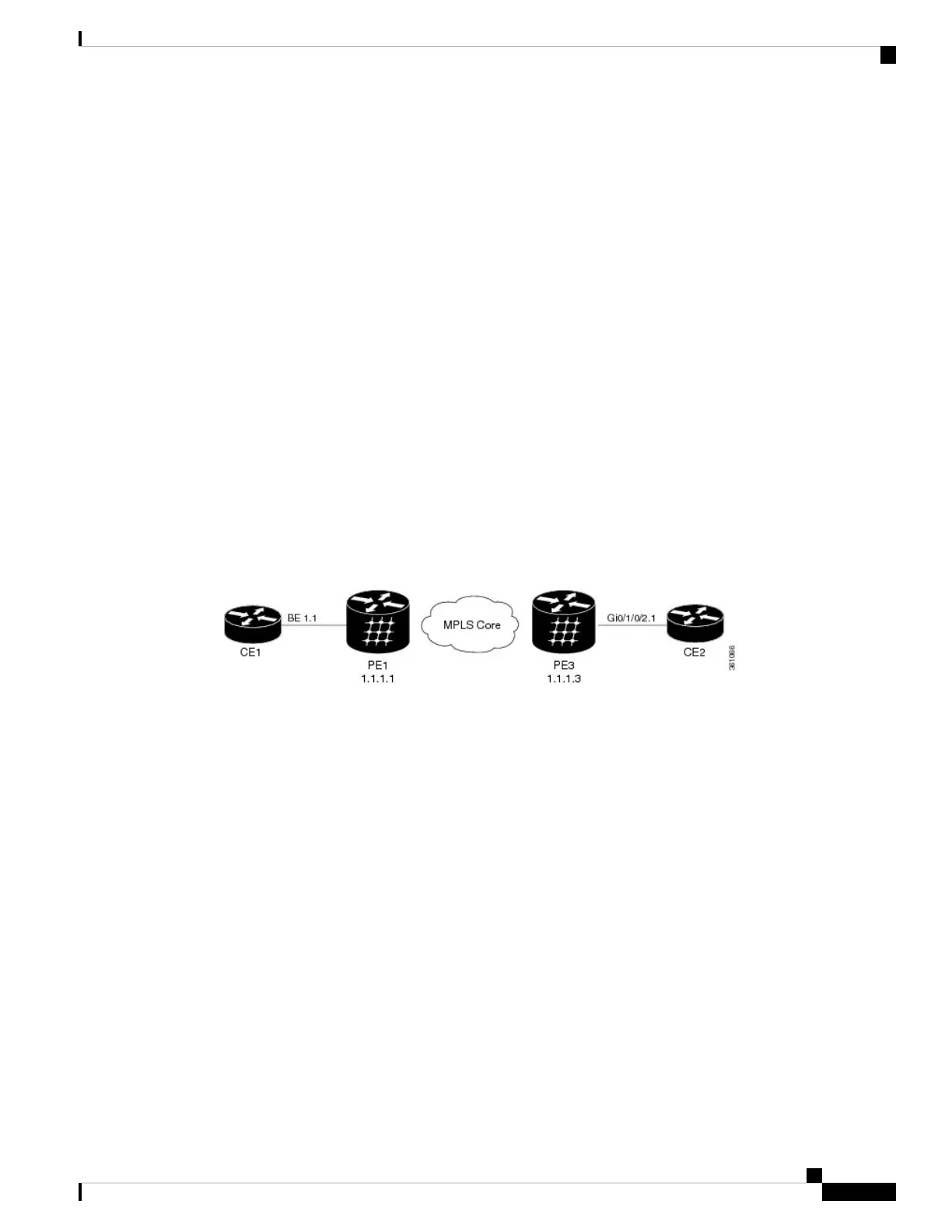

Figure 49: PBB-EVPN on Single Homed Device/Single Homed Network
Configuration on PE1:
interface Bundle-Ether1.1 l2transport
encapsulation dot1q 1 200
l2vpn
pbb
backbone-source-mac 00aa.00bb.00cc
bridge group gr1
bridge-domain bd1
interface Bundle-Ether1.1
pbb edge i-sid 300 core-bridge core_bd1
bridge group gr2
bridge-domain core_bd1
pbb core
evpn evi 1000
!
router bgp 100
bgp router-id 1.1.1.1
address-family l2vpn evpn
!
neighbor 1.1.1.3
remote-as 100
address-family l2vpn evpn
