Cisco ASR 9000 Series Configuration Guidelines

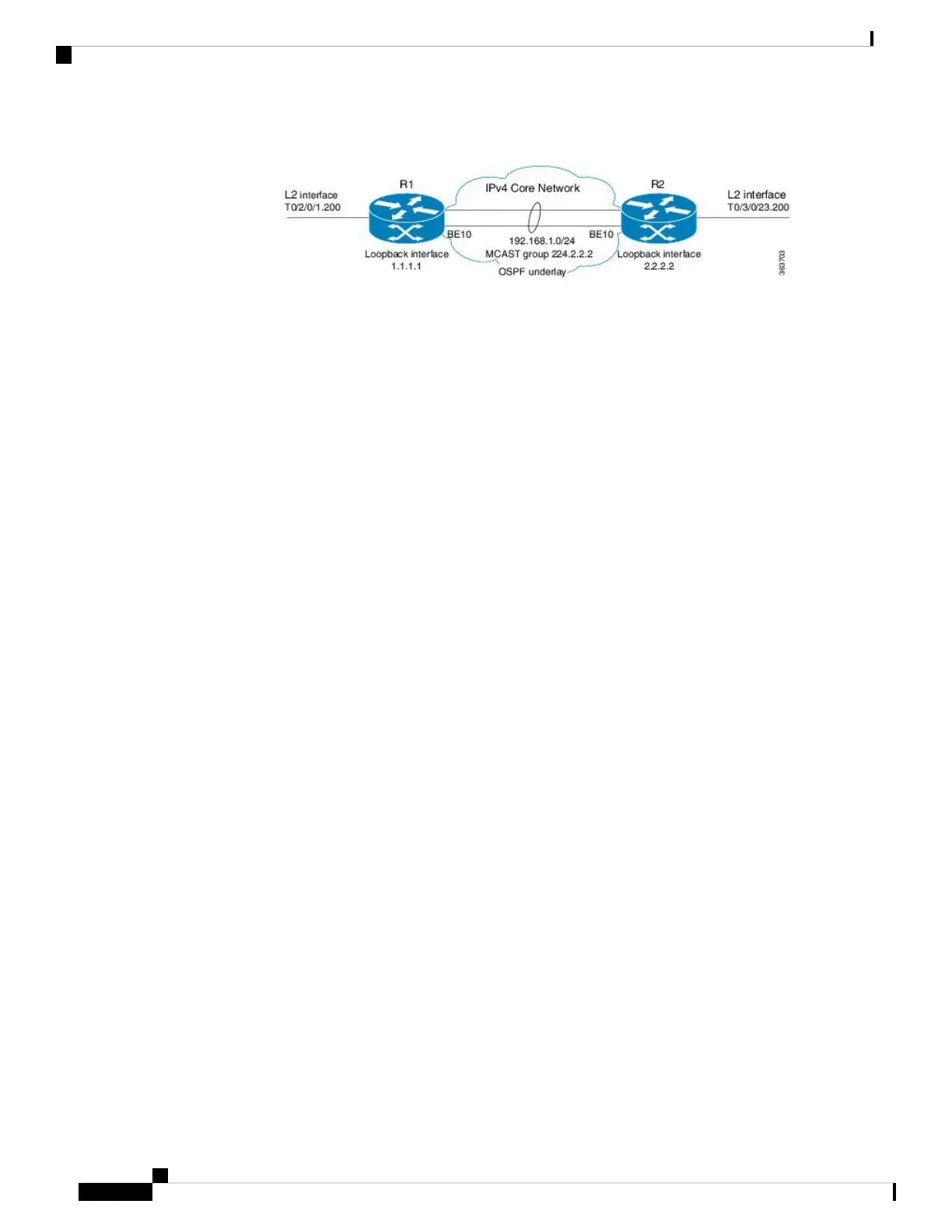

Figure 69: Network with Layer 2 VXLAN Gateways
Configuration at R1:
interface Bundle-Ether10
ipv4 address 192.168.1.1/24
!
interface Loopback0
ipv4 address 1.1.1.1/32
!
interface T0/2/0/1
no shut
!
interface T0/2/0/1.200 l2transport
encapsulation dot1q 200
!
router ospf underlay
router-id 1.1.1.1
area 0
interface Bundle-Ether10
interface Loopback0
!
interface nve 1
member vni 1 mcast-group 224.2.2.2 0.0.0.0
overlay-encapsulation vxlan
source-interface Loopback0
!
l2vpn
bridge group vxlan
bridge-domain vxlan
interface T0/2/0/1.200
member vni 1
!
multicast-routing
address-family ipv4
interface Loopback0
enable
interface Bundle-Ether10
enable
!
router pim
address-family ipv4
rp-address 1.1.1.1 bidir
Configuration at R2:
interface Bundle-Ether10
ipv4 address 192.168.1.2/24
!
interface Loopback0
ipv4 address 2.2.2.2/32
!
interface T0/3/0/23
no shut
!
interface T0/3/0/23.200 l2transport
L2VPN and Ethernet Services Configuration Guide for Cisco ASR 9000 Series Routers, IOS XR Release 6.3.x
482
Implementing VXLAN
Configuration Example for Implementing Layer 2 VXLAN Gateway
