Cisco D9865 Installation And Configuration Guide

4-44
Cisco D9865 Satellite Receiver Software Version 2.20 Installation and Configuration Guide
OL-31085-01
Chapter 4 Setup and Monitoring via On-Screen Display
Setup Menu

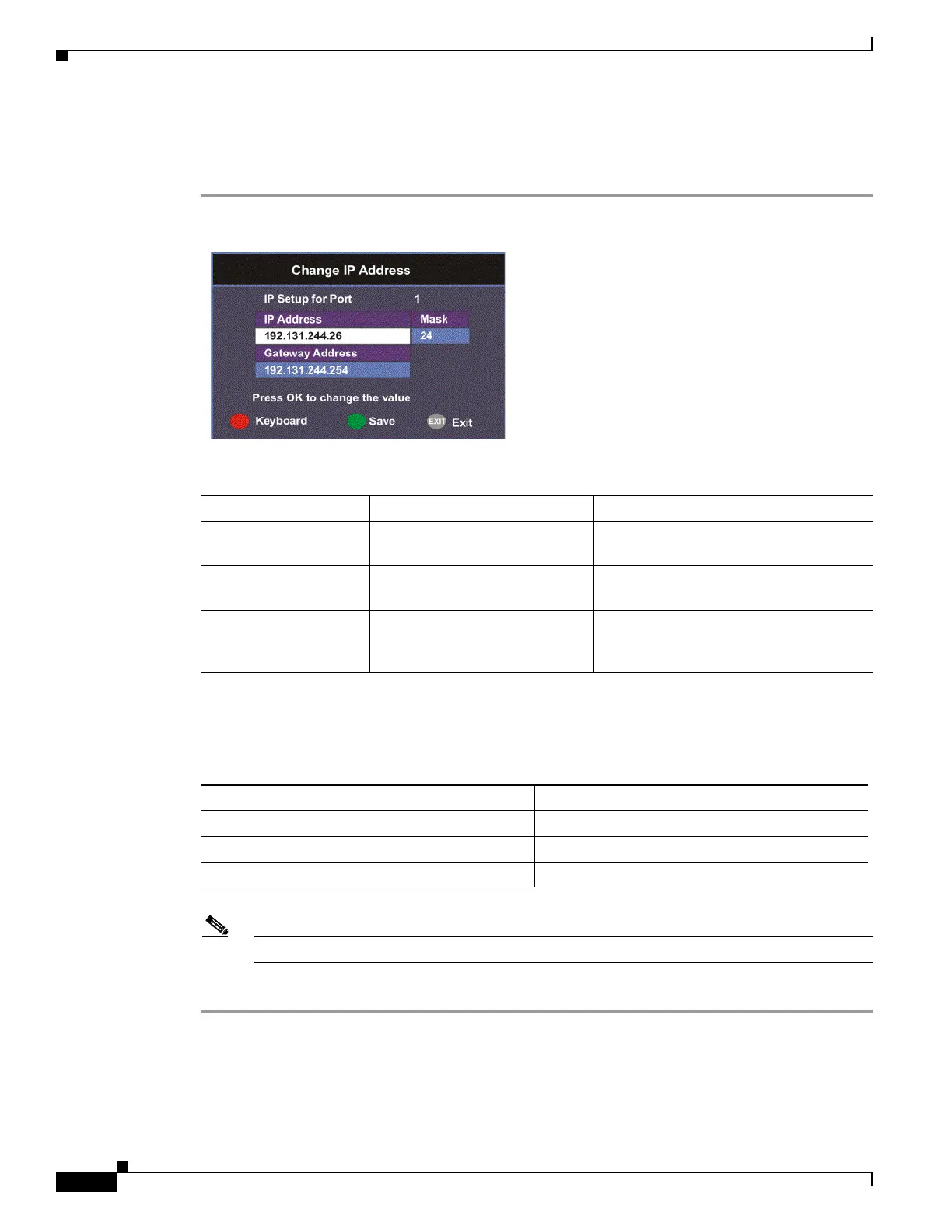

Editing an IP Address
Proceed as follows to edit the Network IP Address:
Step 1 From the IP Setup screen, press the yellow button (SetIPAddr).
Step 2 Make the necessary changes. The following table describes each of the options:
The Network Address, Prefix Mask, and Gateway Address should be changed together, as a group. The
following table shows the most commonly used Subnet mask values to enter for a chosen IP address
mask, which will depend on the size of your network.
Note Only Port 1 is available for this release.
Step 3 Press the green button (Save) to save your changes.
Selection Options Description
IP Address 12 digits in length
(###.###.###.###)
Sets the IP Address for its participation in
a Network environment.
Mask 8 to 32 Sets the Subnet Mask for its participation
in a Network environment.
Gateway Address 12 digits in length
(###.###.###.###)
Sets the Network Gateway Address on the
Network, used to expose the receiver to a
WAN .
Mask Subnet Mask
8 255.0.0.0
16 255.255.0.0
24 255.255.255.0
