ACL Configuration:

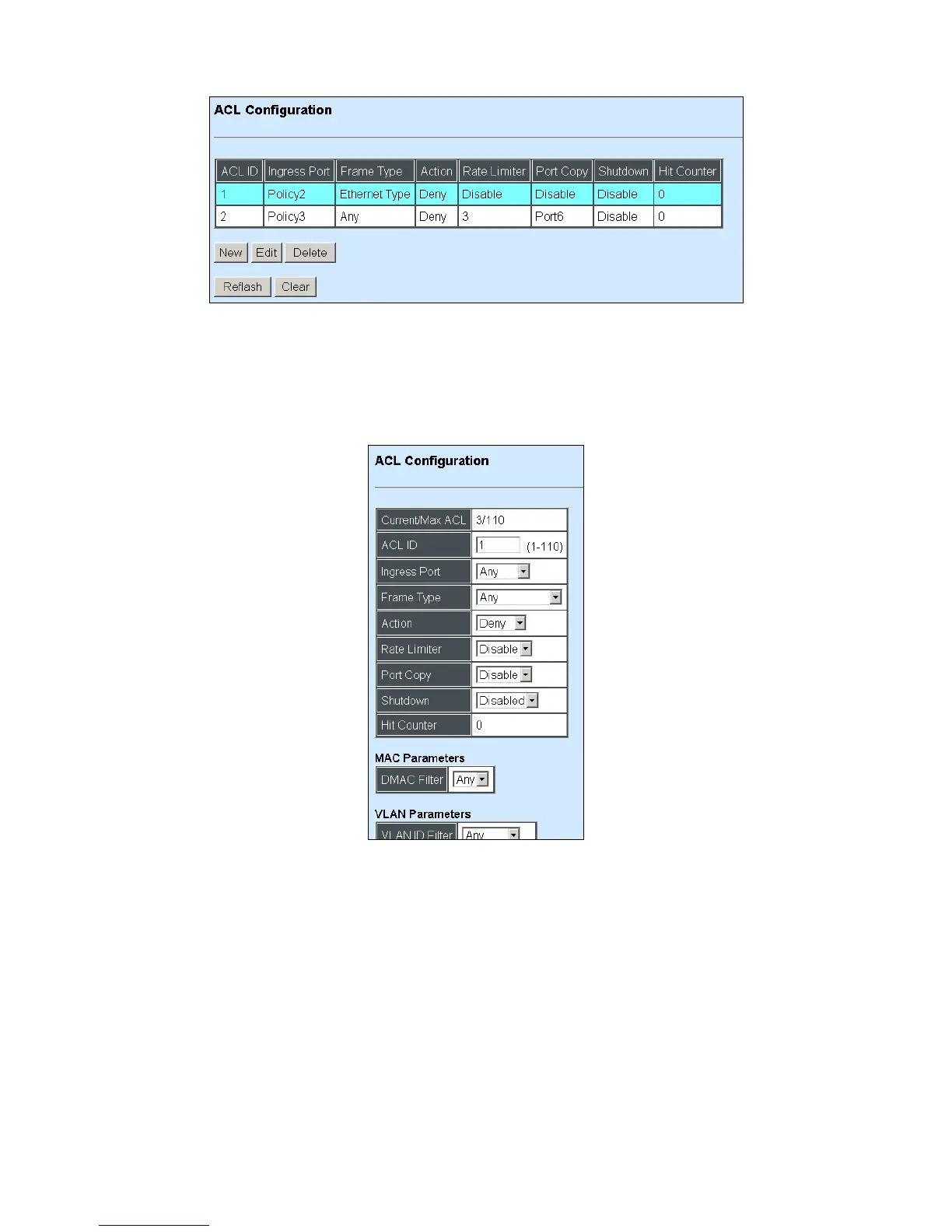

Click New to add a new ACL configuration, then the screen page is shown below.
Click Delete to remove an existing ACL configuration.
Click Edit to view and edit an existing ACL configuration.
Current/Max ACL: View-only field.
Current: This shows the number of the current ACL rule.
Max ACL: This shows the maximum number available for registering ACL rule. The maximum
default number is 110.
Ingress Port: Select a Policy ID or a port number as the ingress port.
Frame Type: Select “Any”, “Ethernet Type”, “ARP”, or “IPv4” as the desired frame type. Options
displayed in MAC and VLAN parameters will vary according to the frame type you select here.
When the information conforms to MAC and VLAN parameters, then actions set in “Action”, “Rate
Limiter”, “Port Copy”, and “Shutdown” will be taken.
Action: Deny or permit the action.
