Select 7 or 8 from the drop-down list. Data Bits is a parameter indicating the
number of bits composing the data packet of the communication protocol
frame.
Select 1 or 2 from the drop-down list. Stop Bits is a parameter indicating the
number of stop bits in the data packet of the communication protocol frame.
3. When you have finished making changes, click Update All to save all pending changes,
click Reset All to revert to all previously saved values, and click Reset Page to revert to
previous saved values on the current page.
Modify Settings | Global Settings | Serial Ports | Aux Port

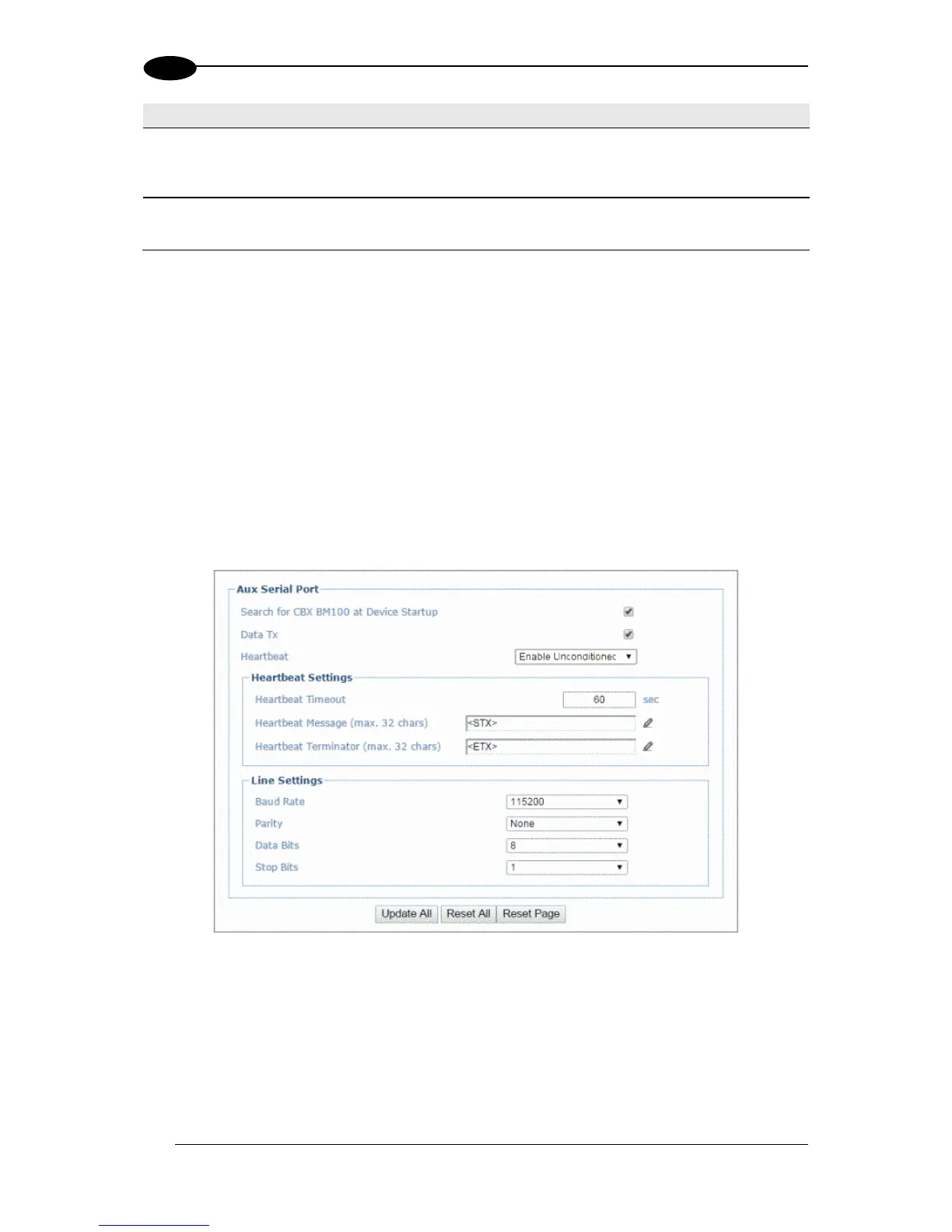

Use the Aux Port window to configure communication through the Auxiliary Serial Port. For
this communication mode, RS232 interface is automatically selected.
To edit the Aux Port settings:
1. In the tree menu under Modify Settings, navigate to Global Settings | Serial Ports |
Aux Port. The Aux Port window opens.
