Datalogic DS8110 User Manual

E-GENIUS
117
4

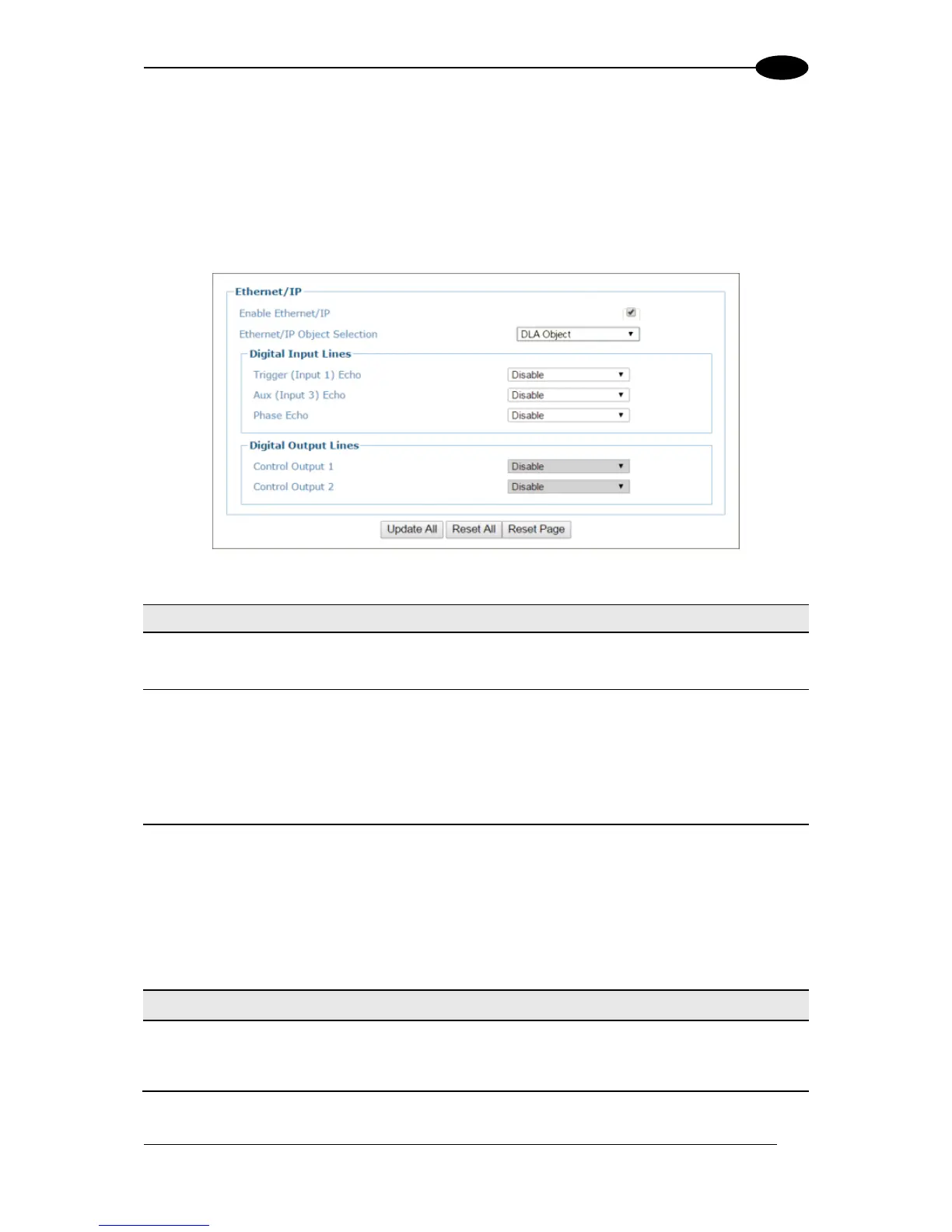

Modify Settings | Global Settings | Ethernet | Ethernet/IP
Use the Ethernet I/P window to set up digital inputs and outputs for the barcode scanner.
To enable or disable Ethernet/IP:
1. In the tree menu under Modify Settings, navigate to Global Settings | Ethernet |
Ethernet/IP. The Ethernet/IP window opens.
2. Enter the appropriate information in the form as described below:
Field Name
Action/Definition
Enable
Ethernet/IP
Select the check box to enable Ethernet/IP and reveal the related configuration
options.
Ethernet/IP
Object
Selection
Select DLA Object or ASI Object from the drop-down list.
Selection:
 DLA Object - Refers to Datalogic Devices
 ASI Object - Refers to legacy Accu-Sort Devices
Enable
ControlLogix
On-Demand
Messaging
Select the check box to enable On-Demand Messaging when ASI Object is
selected.
On-Demand Messaging is a special option for communicating with
ControlLogix/CompactLogix Controllers. When enabled, you must provide the
Controller IP Address, the Slot number of the processor in the Controller and a Tag
Name. To use On-Demand messaging, a tag of the same name is then defined on
the ControlLogix/CompactLogix Controller and every time a bar code is read, the
Bar Code object is transferred to the ControlLogix/CompactLogix Tag.
DLA Object: Digital Input Lines
Trigger (Input 1)
Echo
Select Disable or Enable from the drop-down list. If enabled, the Scanner Master or
SC5000 Controller Trigger (Input 1) status is echoed to the Ethernet Client via bit 0
in Byte InputBits of the DL_InputStruct.
