Modify Settings | Global Settings | Messaging | Pass-Thru
Use the Pass-Thru window to pass a message received on ANY port (serial or user socket
connection) to any other port(s).
Applications can also be implemented to connect a device such as a hand-held reader to any serial or
network port for additional manual code reading capability.
When using Pass-Thru mode, follow these programming notes:
When using serial ports - Program receiving port same way regarding baud rate, data bits, stop bits
and parity to the device sending the data.
The Termination string must be configured in the same way as the message terminator on the
device sending the data. The terminator will be forwarded with the message.
To edit the Pass-Thru settings:

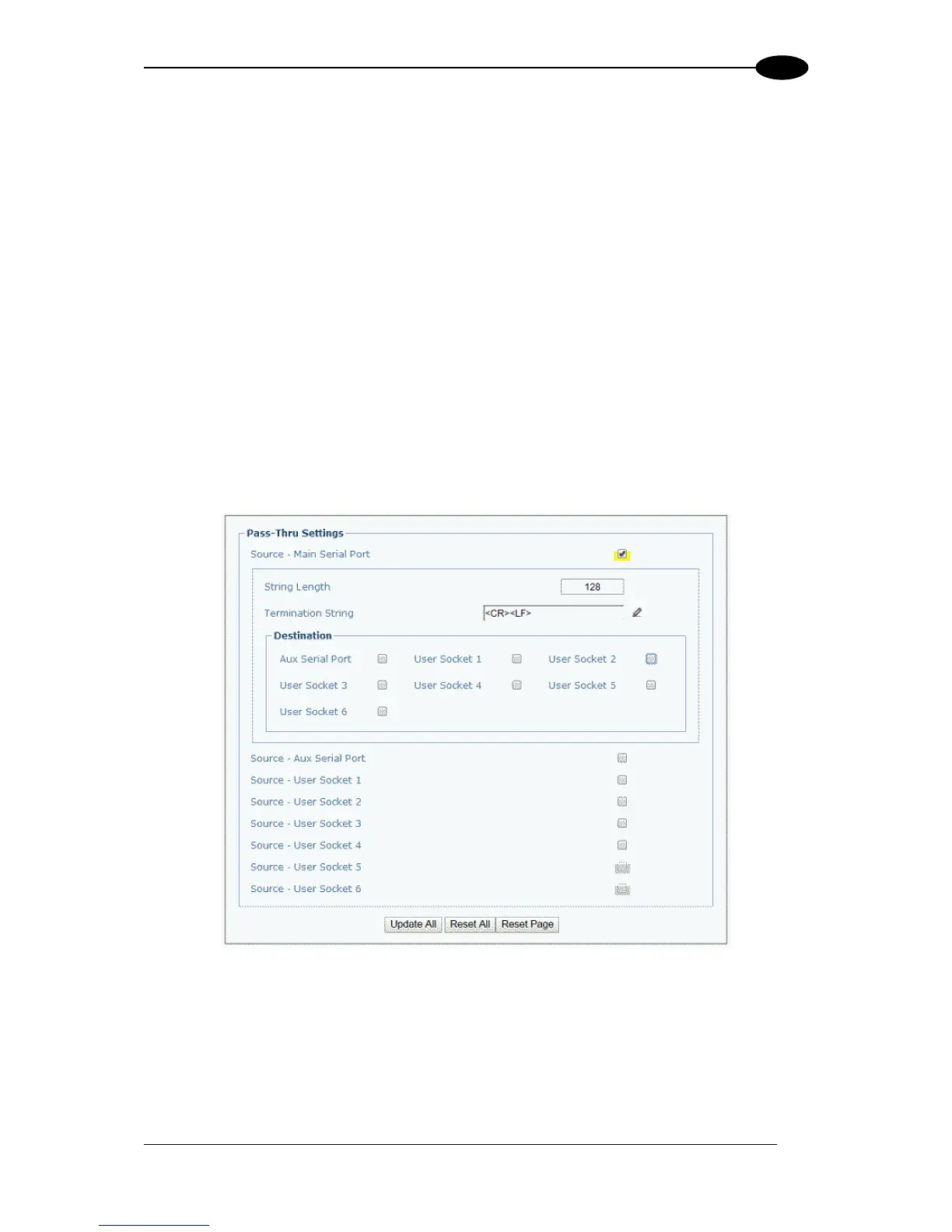

1. In the tree menu under Modify Settings, navigate to Global Settings | Messaging |
Pass-Thru. The Pass-Thru window opens.
To Next Page
