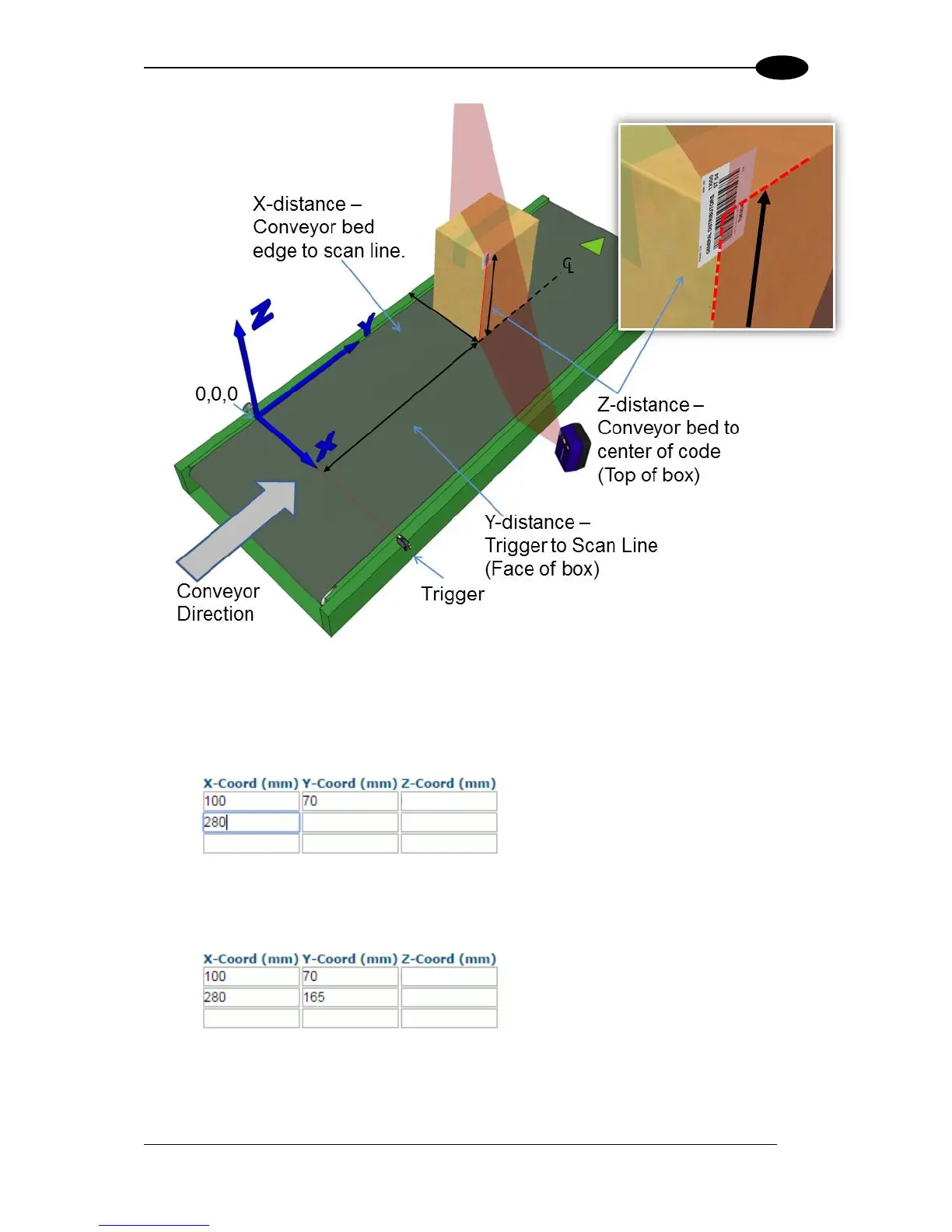

Figure 55: Side-read 2
nd
barcode placement
7. Measure the distance for X from the left edge of the conveyor bed to the center of the
barcode (right edge of box), and enter that distance in the first box under X-Coord (mm).
Your measurements will likely differ from those shown below.
8. Measure the distance for Y from the trigger (PS line) to the back edge of the box, and
enter that distance in the first box under Y-Coord (mm).
Your measurements will likely differ from those shown below.
