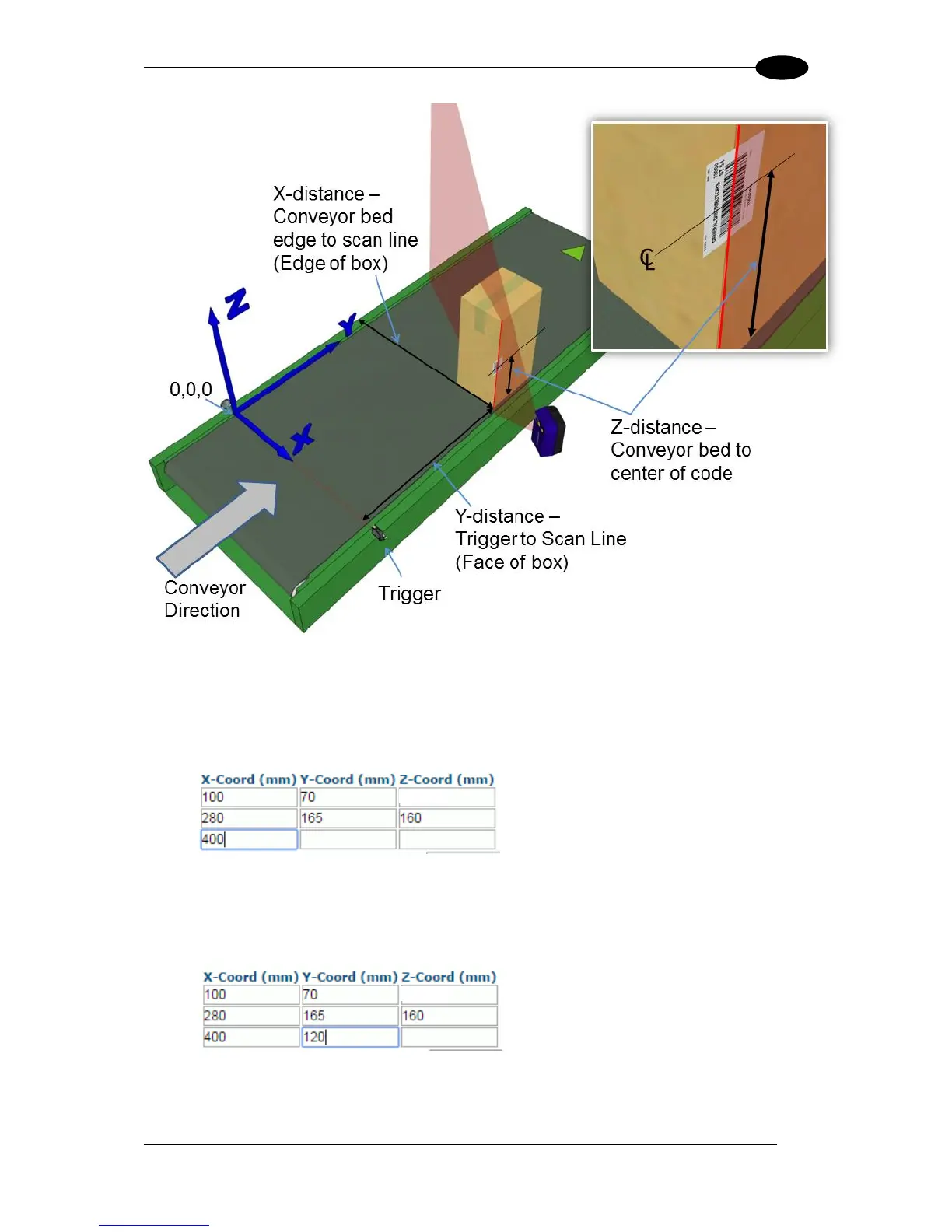

Figure 56: Side-read 3
rd
barcode placement
12. Measure the distance for X from the left edge of the conveyor bed to the center of the
barcode, and enter that distance in the first box under X-Coord (mm).
Your measurements will likely differ from those shown below.
13. Measure the distance for Y from the trigger (PS line) to the barcode scanner's laser line
on the barcode (back edge of box), and enter that distance in the first box under Y-Coord
(mm).
Your measurements will likely differ from those shown below.
