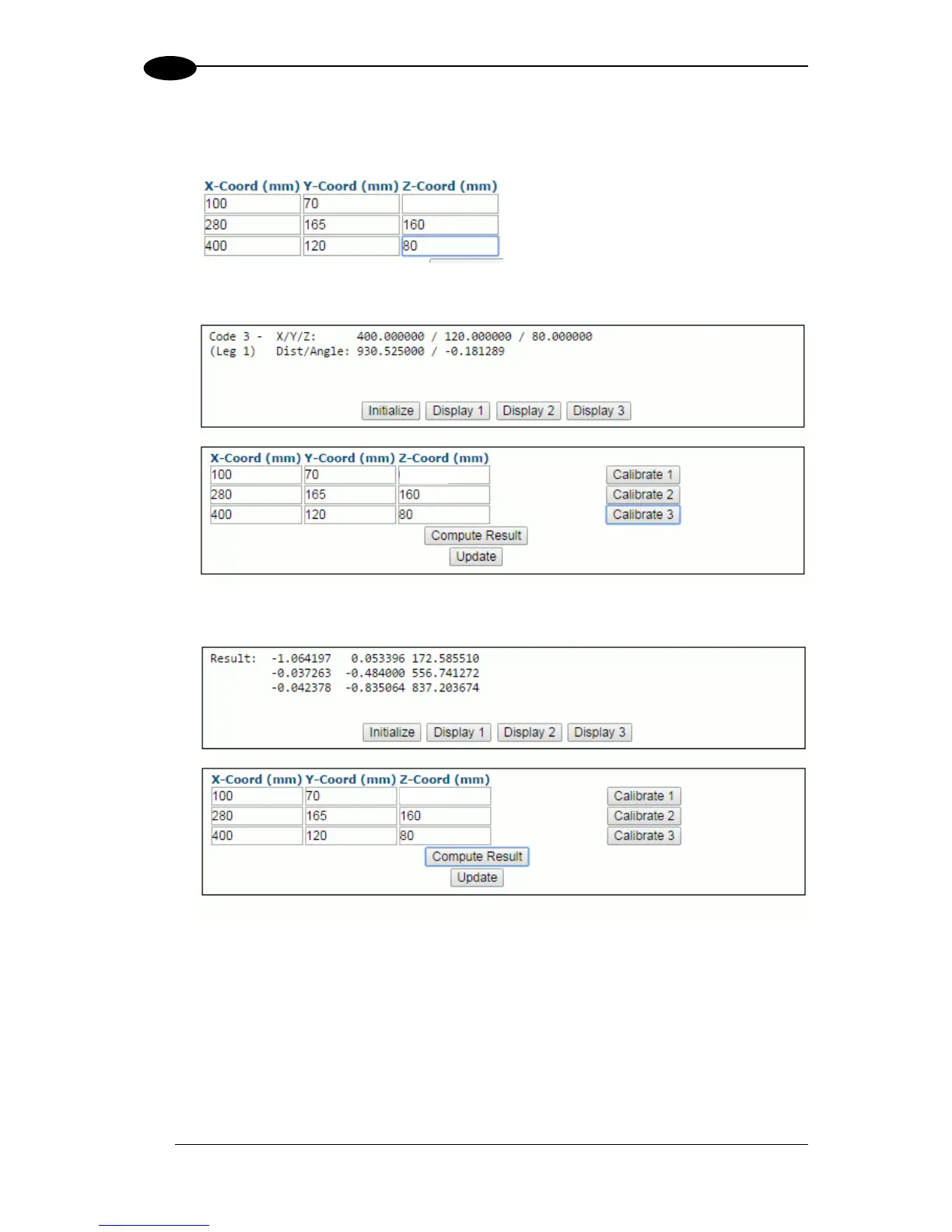

14. Measure the distance for Z from the conveyor bed to the laser line intersecting the
barcode, and enter that distance in the first box under Z-Coord (mm).
Your measurements will likely differ from those shown below.
15. Click Calibrate 3. PackTrack data is displayed for the third code.
16. Click Compute Results. The results are displayed at the top of the PackTrack
Calibration window.
17. Click Update. "Update Successful" should be displayed in the PackTrack Calibration
window.
