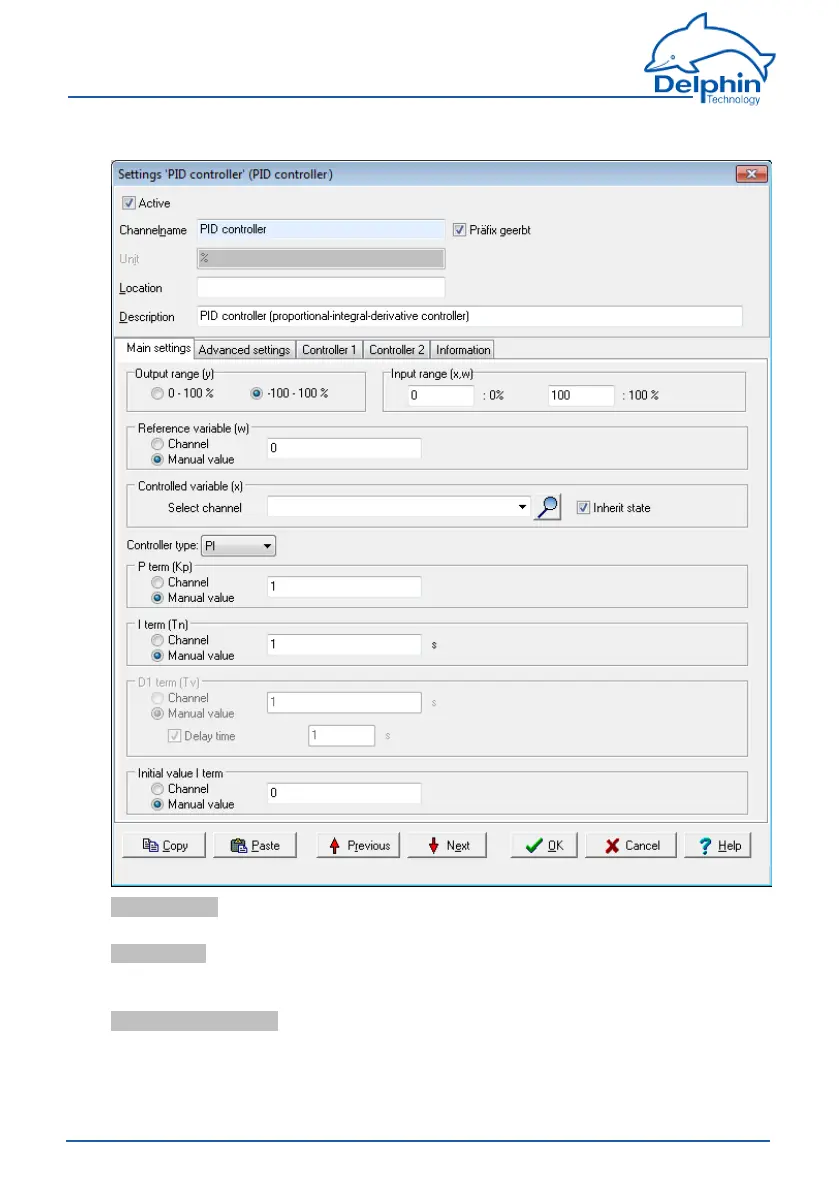

4.7.14.3.1 Mainsettingstab

Output range:Settherequiredoutputrangeforthefinalcontrolelement:0...100
%or-100...+100%.
Input range:Matchtheinputrangeofthesetpointvariable(w)andprocessvari-
able(x)totheinternaloperatingrangeofthecontroller.Important:Thesetpoint
variable(w)andprocessvariable(x)mustmatchoneanother.
Setpoint variable (w):Sourcechannelforthesetpointvariable.Ananalogueinput,
amarkerortheoutputofanothercontroller(cascade)isnormallyusedasthe
sourcechannel.Ensureinthecaseofacascadethatthemastercontrollerhasa
127
Delphin Technology AG
Dezember 2015
ProfiMessage Manual
