6.2 Connecting actuators

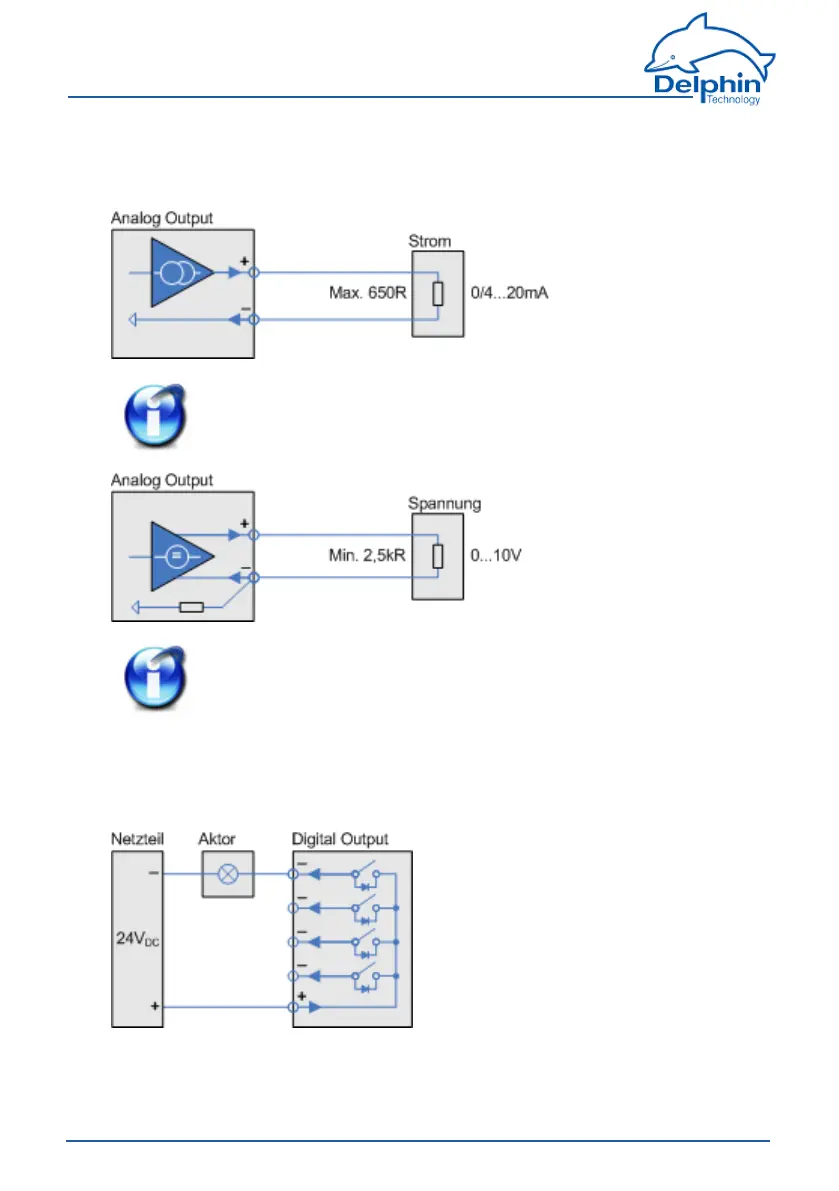

Actuator at an analogue output

TheI/OmodulesAASTandADIThavepowersourcesasanalogueout-
puts.
Themaximumpermissibleloadresistanceoftheactuatoris650Ω.

TheI/OmodulesADFTandAMDThavepowersourcesasanalogue
outputs.
Theminimumpermissibleloadresistanceoftheactuatoris2.5kΩ.
Actuator at a digital output, resistive load
Toconnectanactuatoratadigitaloutputrequiresanexternalsupplyvoltageof
between5VDCand50VDC(24Vintheexamples).
