Delphin ProfiMessage User Manual

ProfiMessage
Theoutcomeofsynchronisation:Triggeringtakesplace(almost)simultaneously
Measurementdata(timesignal/frequencyspectrum)aretransmittedcon-
secutively.

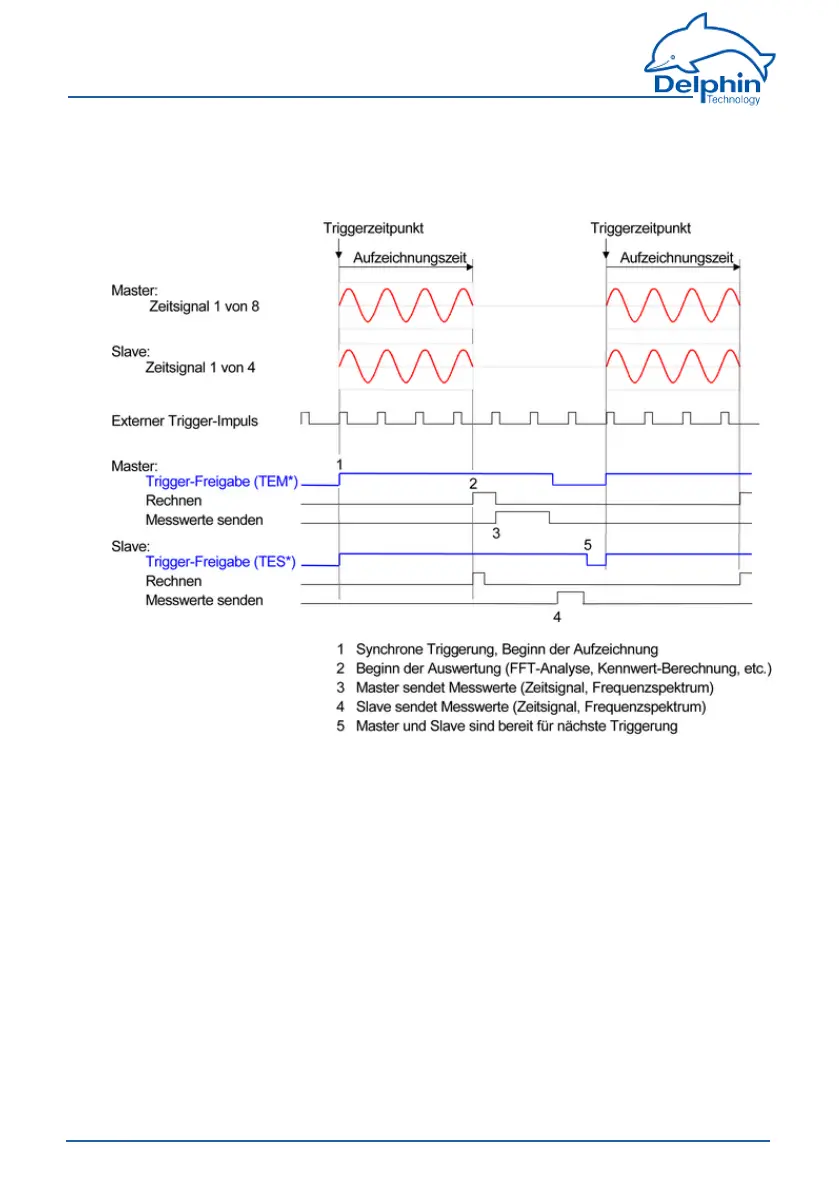

Timingdiagramasuserexample

9.2.2 Triggeringandrecording
Properties
l Softwaretriggerviatimeinterval,periodicallywithintherange1msto60s.
l Hardwaretriggerviaanalogueinputordigitalinput
l Triggerthreshold,edge,andpolarityadjustable
l Batchrecordingatasamplingfrequencyintherangeof256Hzto20480Hz
(for1to8channels)
l Continuousrecordingatasamplingfrequencyintherangeof256Hzto
1024/2048/4096kHz(for8/4/2channels)
l Recordingdepthofmax.8192or4096samplesforeachchannel,max.8syn-
chronouschannels
l Pre-triggerintherangeof0to100%ofrecordingdepth
l Start-stoptriggerfunctionforexternallydeterminedrecordingdepth
Hardware trigger operating modes
253
Delphin Technology AG
Dezember 2015
ProfiMessage Manual
