Delphin ProfiMessage User Manual

ProfiMessage

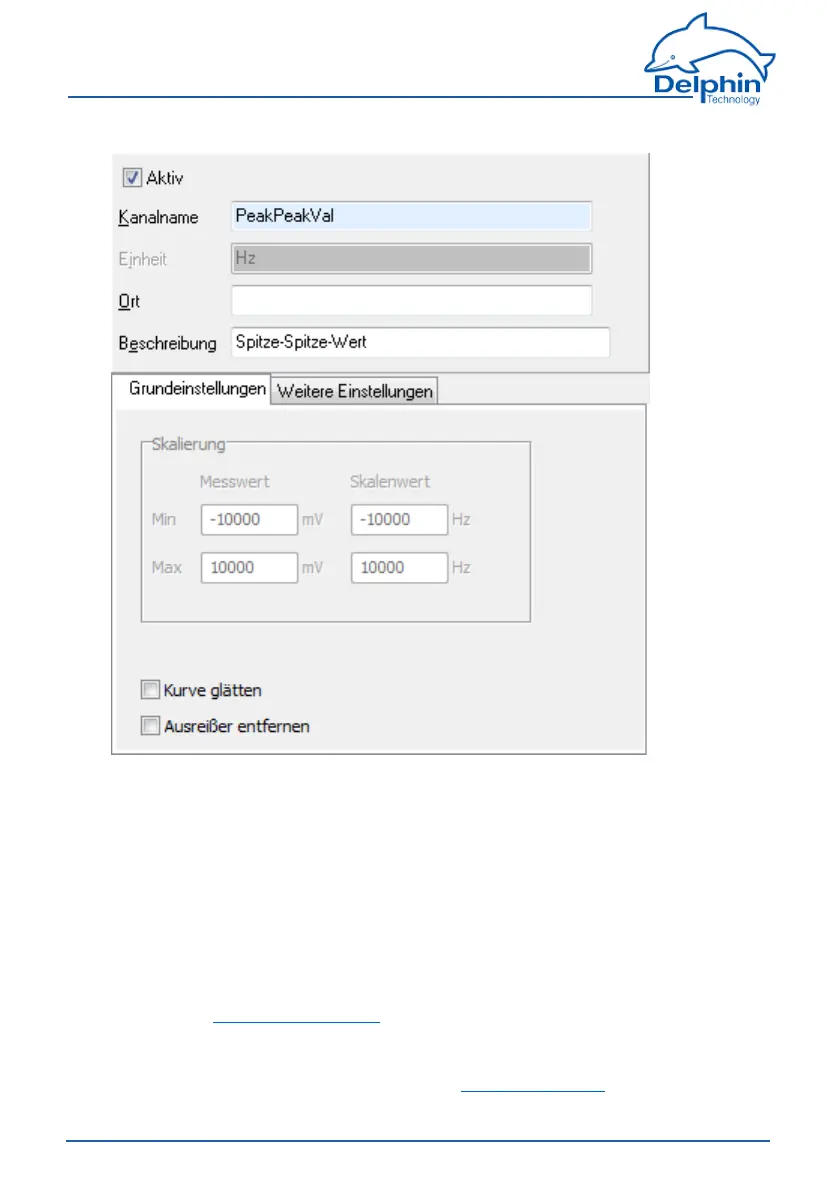

Hereisanexampleofa“peak-to-peak”characteristicvalue:

Active
Activatingthischanneltransmitstheselectedvibration/wavecharacteristicvalue
asmeasurementdatafollowingeachtriggering.
Measurement range/Scaling/Unit
The“Characteristicvalue"channelisderivedfromoneoftheanalogueinputchan-
nelsandthereforeinheritsitsscaling.Theeffectivescalingisgrayed-outhere.
Exceptionsarethosecharacteristicvaluesthatdeliverfrequencyorphasemeas-
urements.ScalingisthenpresettoHzor°(degrees).
ReferalsotoCharacteristicvaluesforadditionalsettingsoptions.
9.3.1.6 Configuring/settingforanalogueoutput
Referalsotothetechnicalspecificationsforanalogueoutputs.
299
Delphin Technology AG
Dezember 2015
ProfiMessage Manual
