ProfiMessage


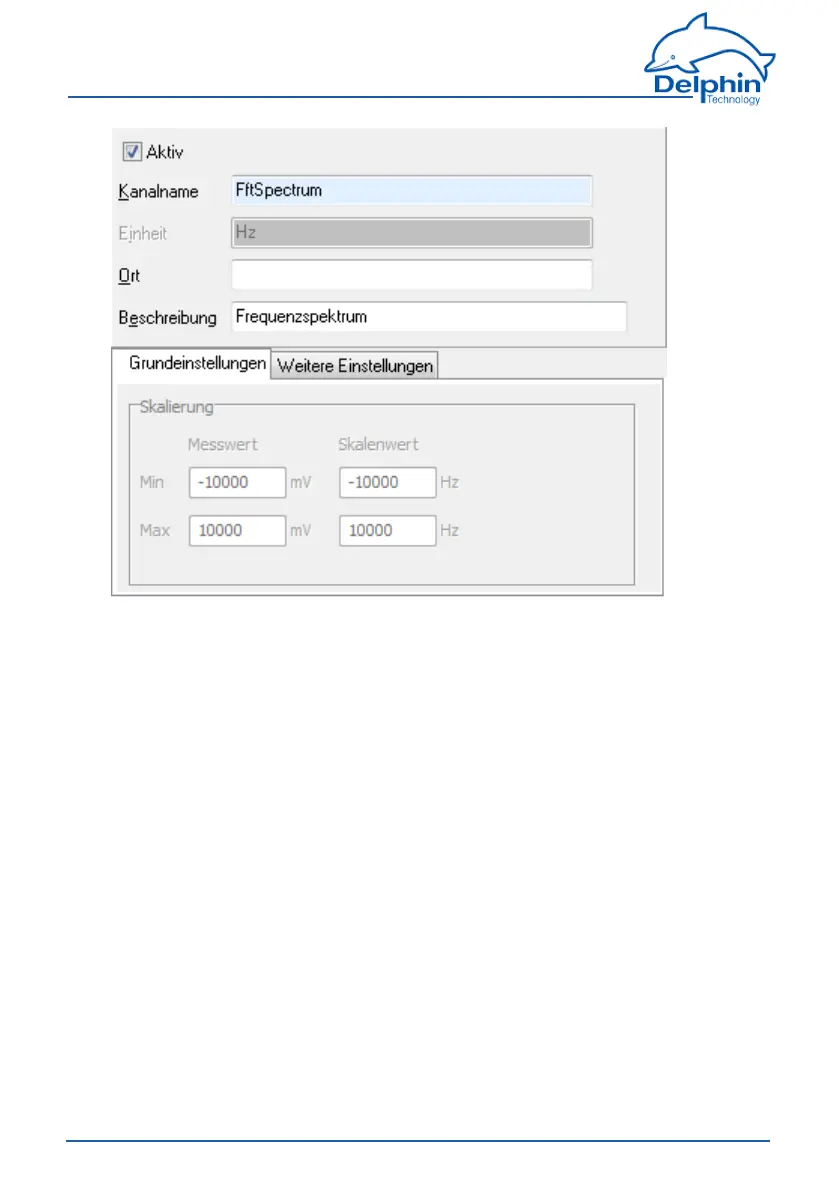

Active
Activatingthischanneltransmitsafrequencyspectrumasmeasurementdata,fol-
lowingeachtriggering.Unrequiredchannelsshouldbedeactivated.
Scaling
The"FFT/spectrum"channelisderivedfromoneoftheanalogueinputchannels
andthereforeinheritsitsscaling.Theeffectivescalingisgrayed-outhere.
9.3.1.5 Configuration/settingsforcharacteristicvalue
Toaddacharacteristicvalue,clickthesourceanalogueinputandright-clicktodis-
playtherequiredcontextmenu–refertoimagebelow.Todelete,usethechan-
nel'scontextmenu.
297
Delphin Technology AG
Dezember 2015
ProfiMessage Manual
