Delphin ProfiMessage User Manual

ProfiMessage
Thethreeharmoniccomponentsandthefreelydefinablecomponentscanbepro-
cessedasrequired.Thesecomponentsareeachcalculatedusingthreelinesinthe
aboveformula.1/3/5linesareconfigurable.

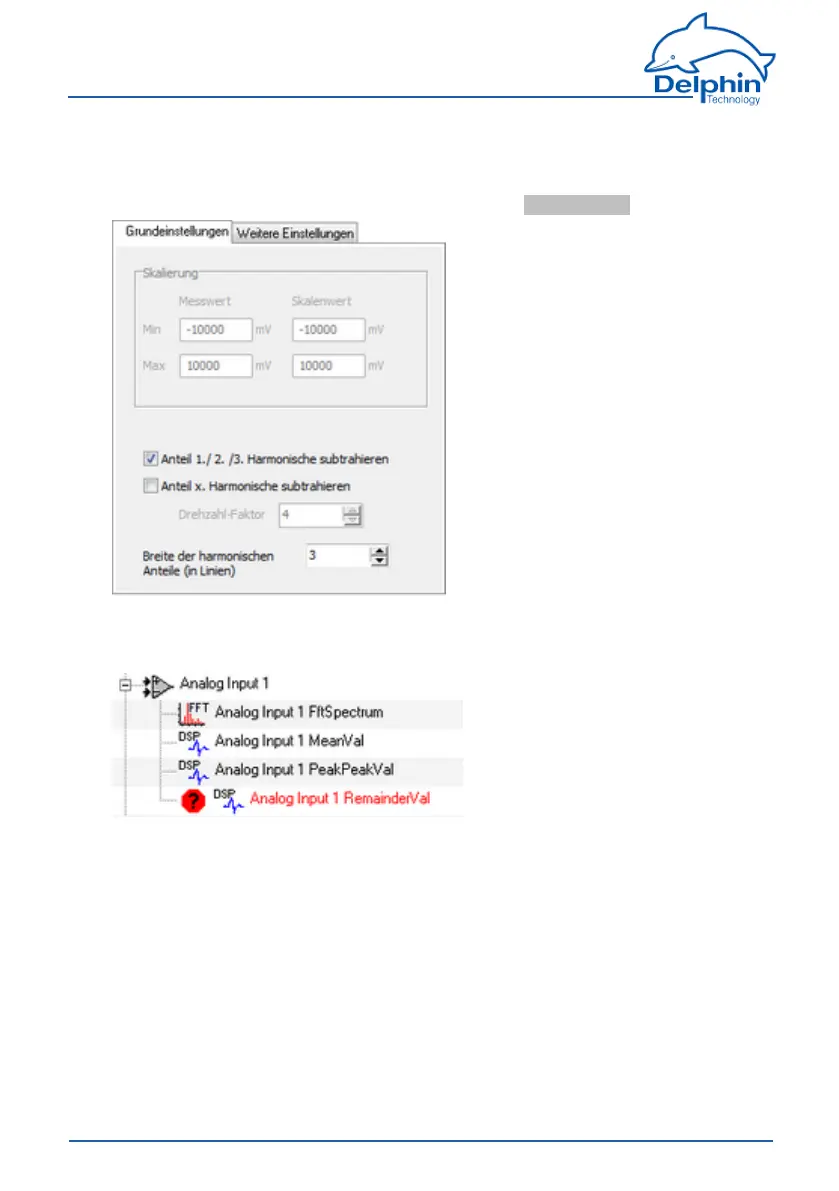

Belowisthecorrespondingconfigurationdialogue(Main settingstab):

Thecharacteristicvaluecannotbegeneratedwithoutarotationpulse.TheDataSer-
viceConfiguratorthendisplaysanerror:

9.2.6 Frequencyandrotationspeedmeasurement
Measuringofcurrentfrequencies/rotationspeedonrotatingequipmentand
determiningtherotationspeedasadditionalinformationforthefrequencyspec-
trum.
Properties
l Frequencymeasurementvia2free-runningcounters(16bit)
l Connectedtodigitalinput1/2
l Signalfrequencyfrom0.2Hzto30kHz
276
Delphin Technology AG
Dezember 2015
ProfiMessage Manual
