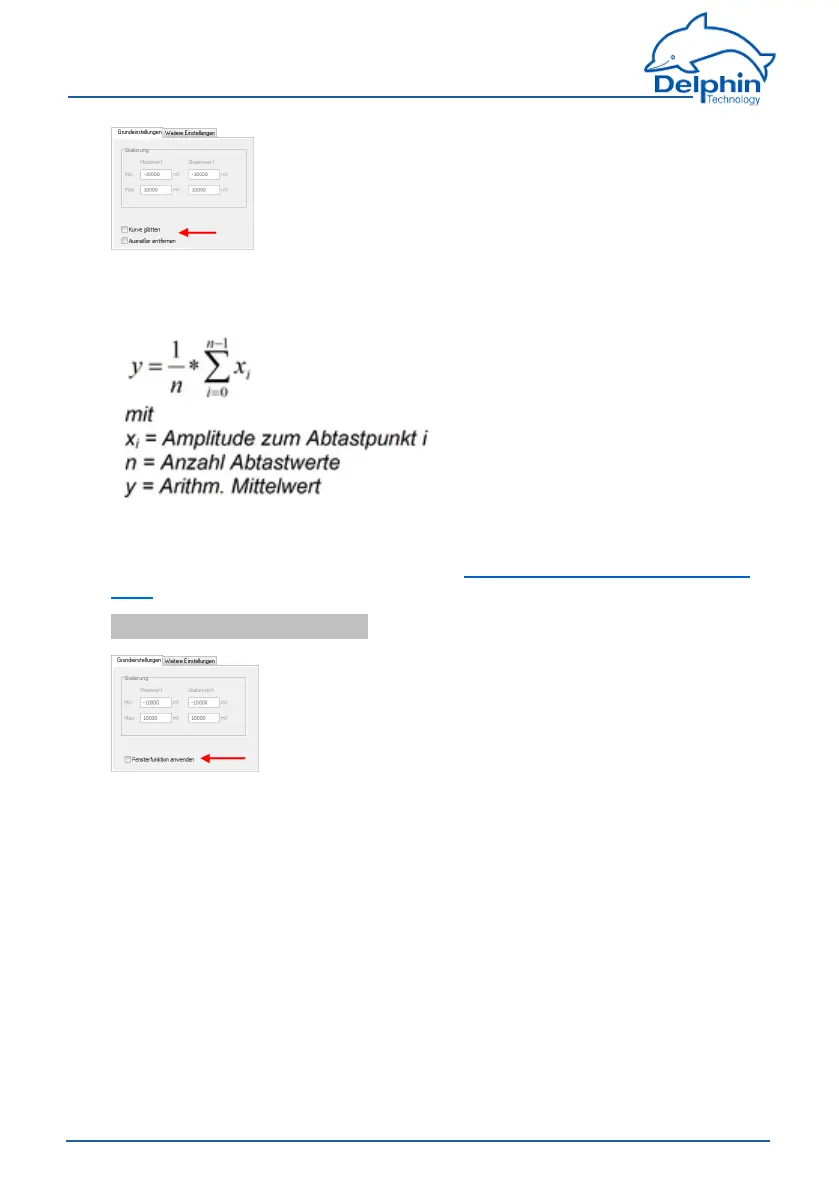

9.2.5.3 "Artihm.Average"
TheDSPcalculatesthearithmeticalaverageofthetimesignal.
Thearithmeticalaverageisalsoreferredtoasasignal'ssteadyorDCcomponent.
Thischaracteristicvalueisavailableevenwhenthe“withoutsteadycomponent”
optionisenabledforananalogueinput(seeconfiguration/settingsforanalogue
input).
Using window function

Selectthisoptiontocalmmeasurementdataforastaticvibration.Aweightingis
thenappliedpriortothearithmeticaveragebeingcalculated.Thesignal'speri-
pheryisweightedloweranditsmiddlehigher.
9.2.5.4 "TrueRootmeansquare(TRMS)"characteristicvalue
TheDSPcalculatestherootmeansquareofthetimesignal.
