Thephaseangleisgivenintherange0…360degrees.Thefollowingtableshows
acomparisonbetweensineandcosinedefinitions:
Sine 0 30 60 90 120... 150... 180...
Cosine 270... 300... 330 360/0 30 60 90
Sine 210 240 270... 300... 330 360 degrees
Cosine 120... 150... 180... 210 240 270... degrees

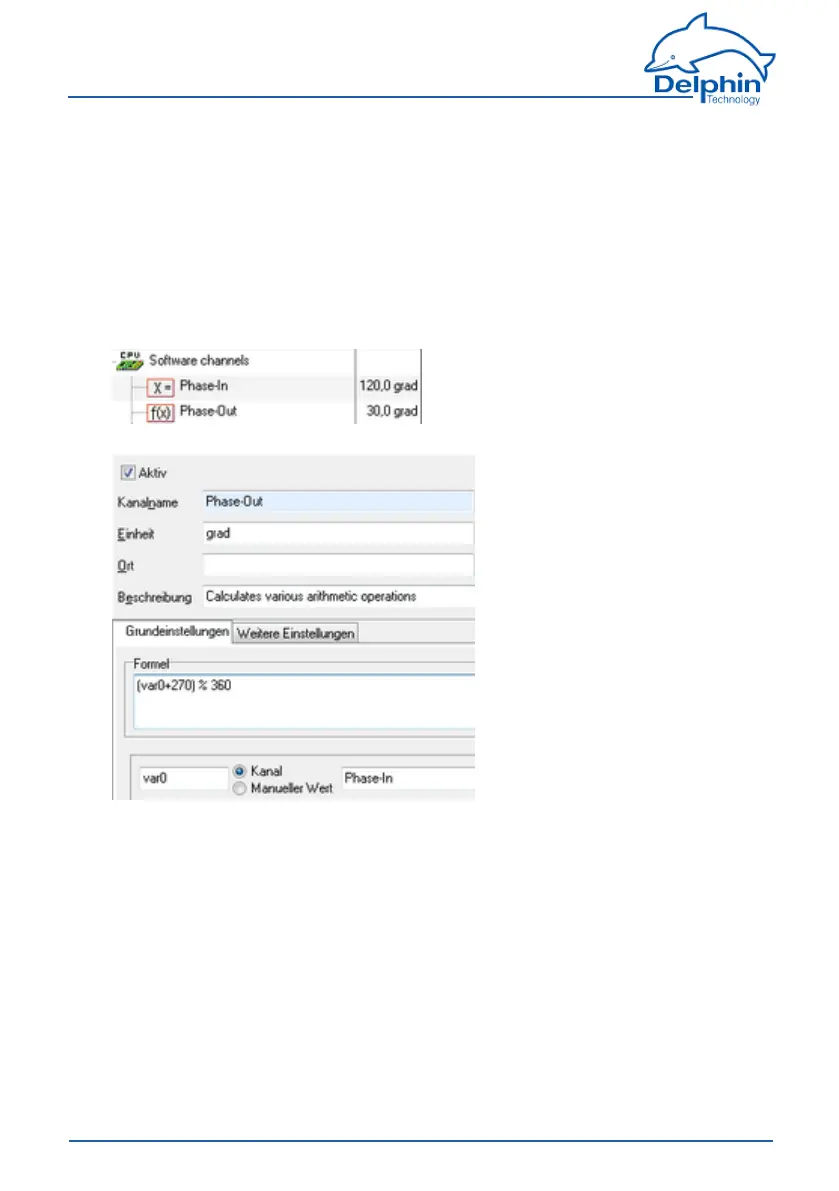

Conversiontakesplaceviaacalculationchannelusingtheformula“Phaseout=
(PhaseIn+270)MOD360”.


9.2.8 Monitoring
The"thresholdvalue"softwarechannelofthebasedevicemonitorscharacteristic
valuesagainstthresholdvalues.Thresholdchannelscanbelogicallylinkedand
outputtodigitaloutputs.Inthesameway,functionscanbeintegratedintothe
monitoring,suchasaveraging,computationsortimeprocedures.
Refertothesectiononsoftwarechannelsinthedevicemanual.
