ProfiMessage
Components
Number
of LEDs
Colour Status/meaning
COM1: 1
green RxD
orange TxD
COM2: 1
green RxD
orange TxD
COM3 1
green RxD
orange TxD
COM4: 1
green RxD
orange TxD

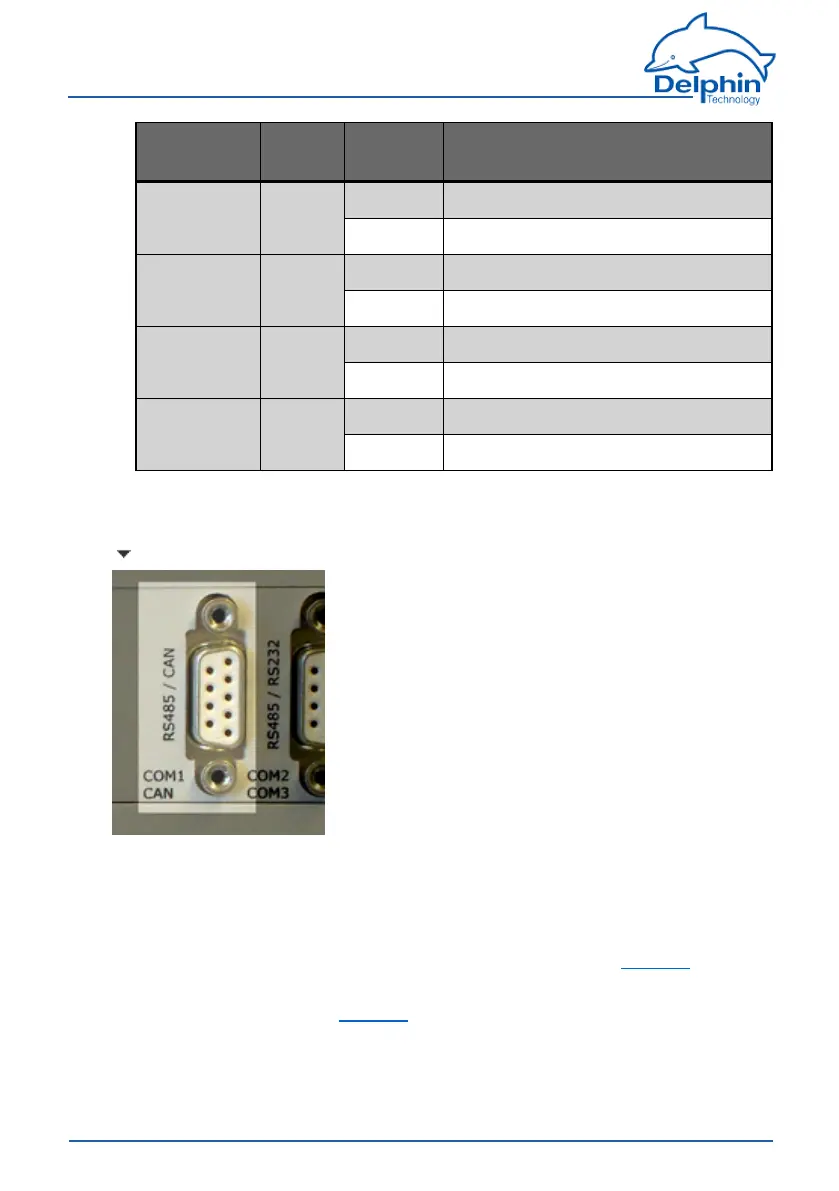

3.4 COM interfaces, CAN
COM1/CAN
Pinassignment9-pol.D-SUBconnector
Pin Signal
COM1RS-485(IEC61158)descrip-
tion
CAN(CiA
DS102-1)
description
Housing Shield Shield/protectiveground,refertoEarthing
1 Shield
Shield/protectiveground,referto
Earthing
-
2 CANL -
CANbus
low
26
Delphin Technology AG
Dezember 2015
ProfiMessage Manual
