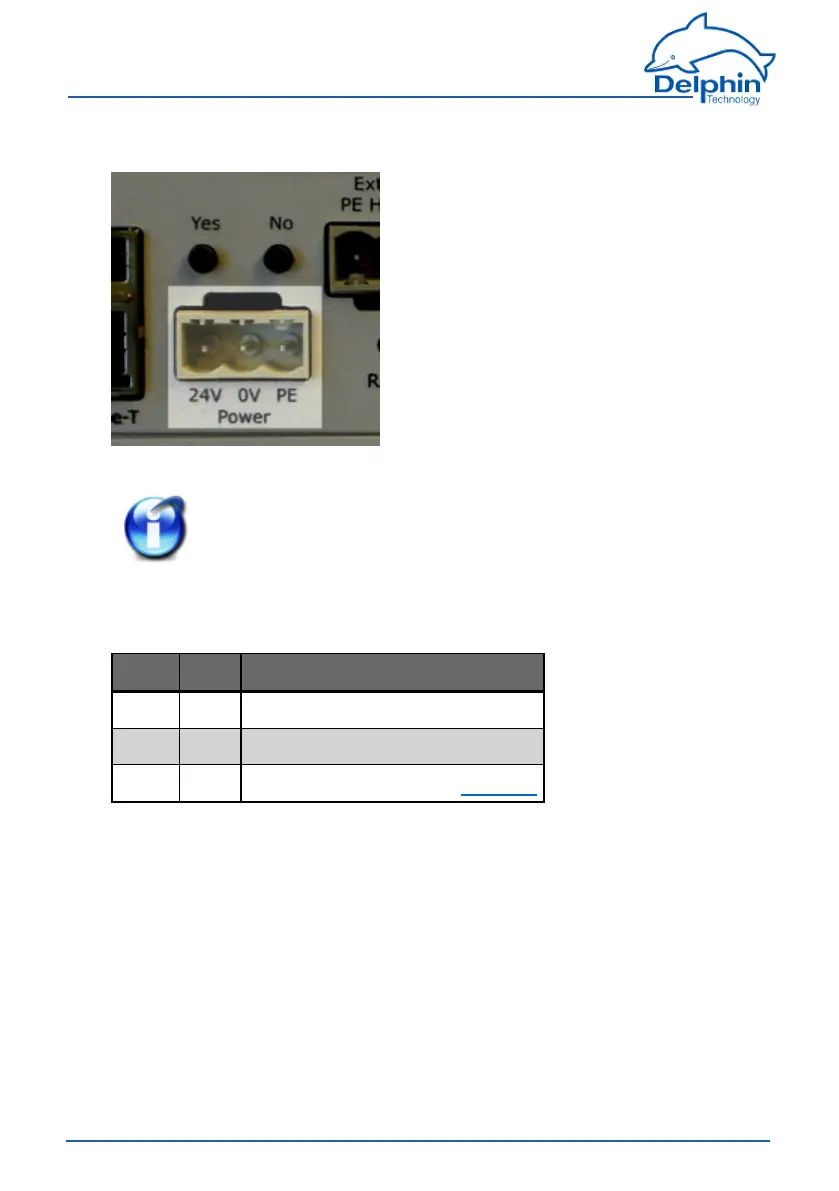

Delphin ProfiMessage - 3.1 Power supply

ProfiMessage
3.1 Power supply

Inputvoltage:12…28VAC±10%/12…36VDC±10%
IfthedeviceisfittedwiththeADFTI/Omodule,theinputvoltage
mustbeatleast18VAC/DC.
Pmaxpowerinput:10W
Pin assignment
Pin Label Description
Left 24V
Power supply
Middle 0V Neutral
Right PE
ProtectiveEarth,refertoEarthing
