ProfiMessage
6 Connection examples
ThisSectionshowsyouconnectionexamplesoftypicalsensorsandactuators.It
explainstheavailableconnectionoptionsandhowtoconfigureyoursensorsand
actuators.
Topics
6.1 Connecting sensors

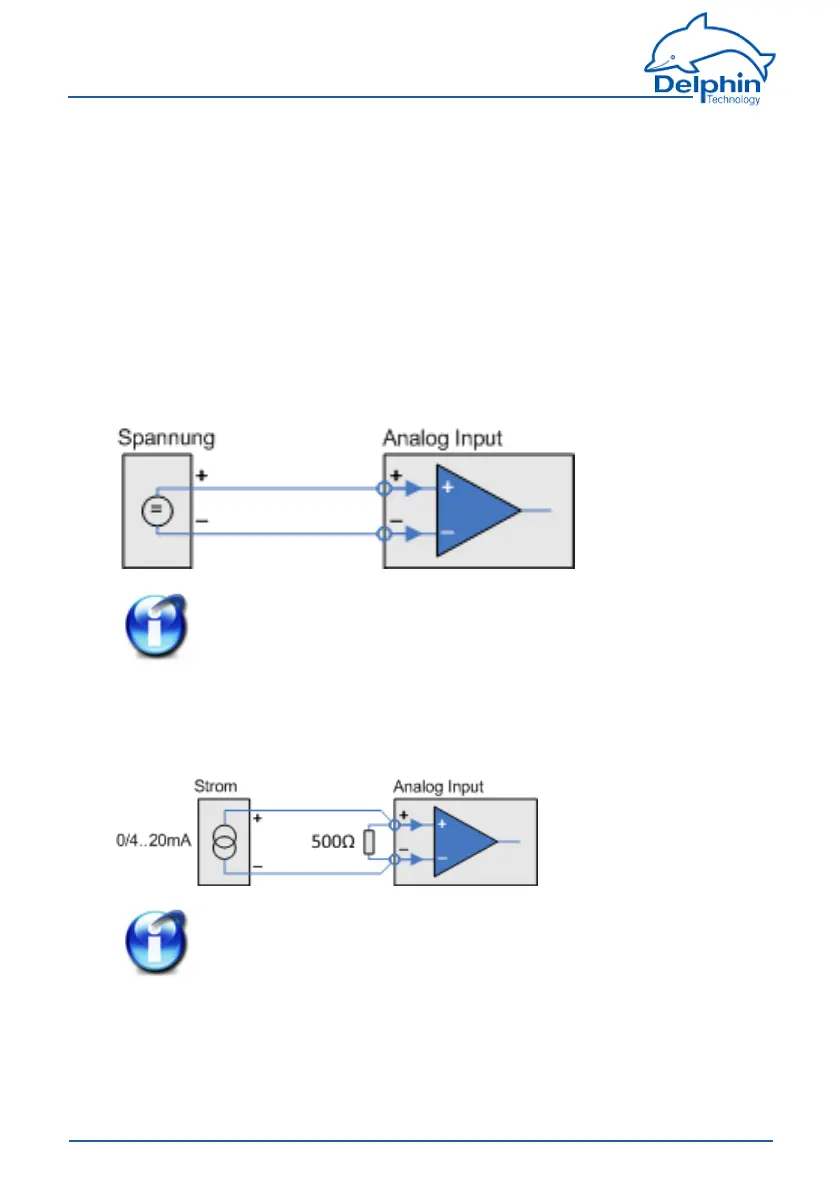

Measuring voltage at analogue input
Sensorswithvoltagesignalcanbedirectlyconnected.
Thelargestmeasurementrangeis±10Vbipolaror10Vuni-
polar.
Thesmallestrangeis±156mVbipolarand156mVunipolar.
Measuring 20 mA current at analogue input
Forsensorswithcurrentsignalsyoumustconnectwhatisknownasaloadres-
istortothedeviceinputterminals.Suitableresistorsareavailableasaccessories.
Measuring temperatures with a thermocouple at analogue
input
207
Delphin Technology AG
Dezember 2015
ProfiMessage Manual
