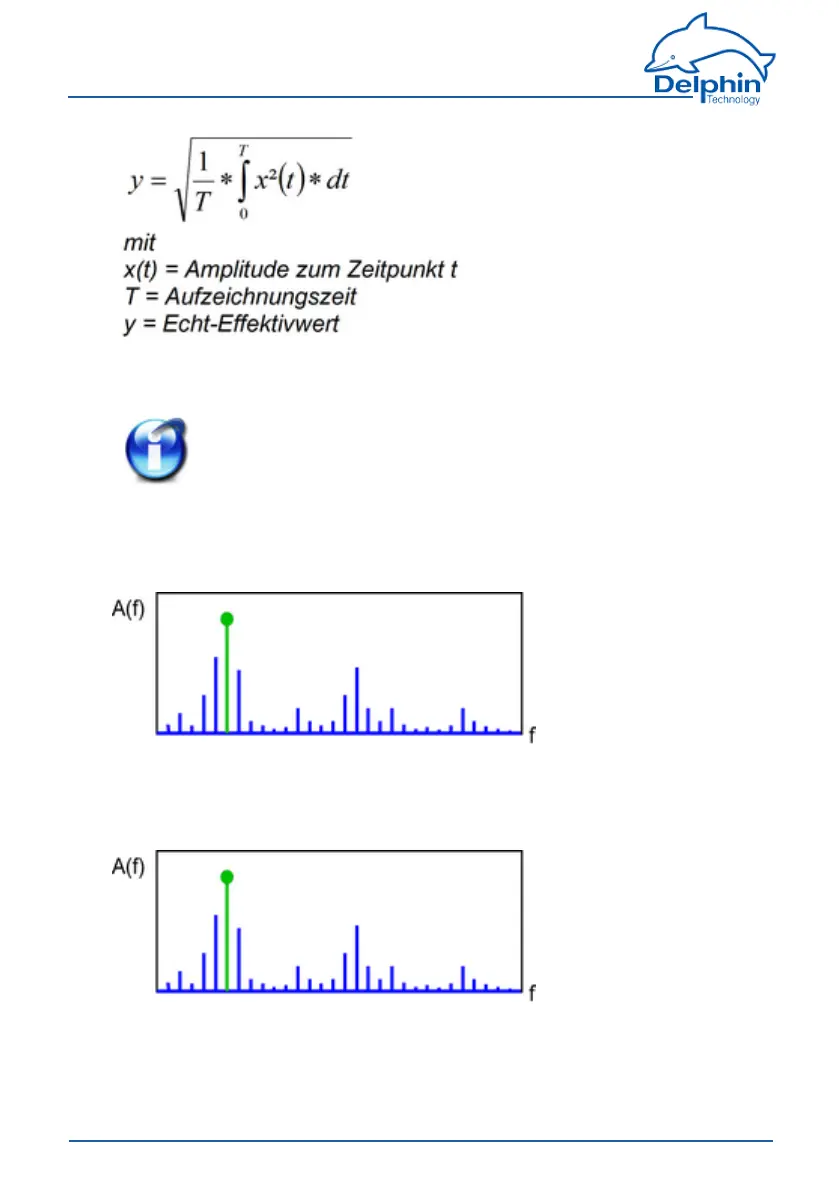

Discretizationenablesagoodapproximationtotheaboveformula.
For1...8analogueinputs:Integratoravailable
TheaccuracyforTRMScalculationsonsinesignalsdependsonthe
numberofsignalperiodsacquired.Generalrule:Errorsare<3%for
morethan2periods;Errorsare<1%formorethan4periods.
9.2.5.5 "Frequencyofmainvibration"characteristicvalue
TheDSPdetermines(finds)thelargestamplitudeinthefrequencyspectrumand
deliversthefrequencyofthisline.

9.2.5.6 "Amplitudeofthemainvibration"characteristicvalue
TheDSPdetermines(finds)thelargestamplitudeinthefrequencyspectrumand
providesthevalueoftheamplitudeforthisline.

264
