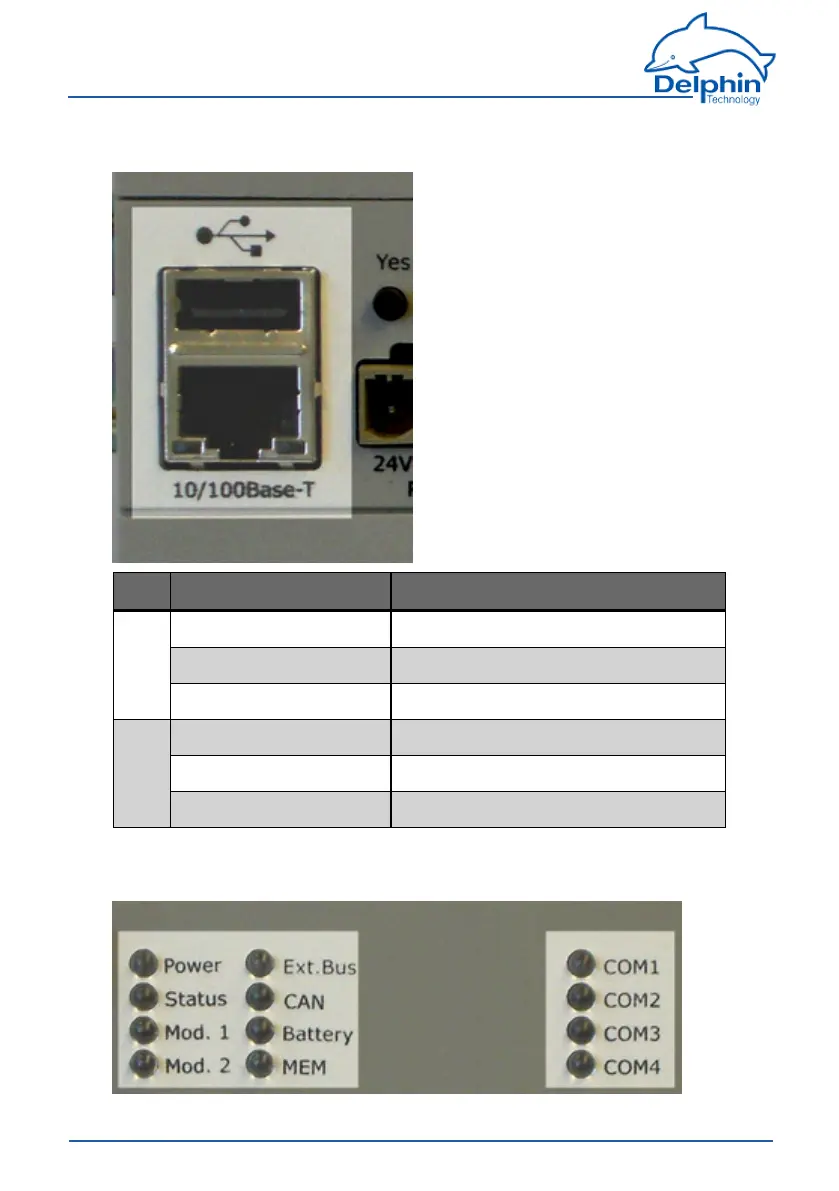

3.2 LED displays, LAN, USB



LED Status Description

Right

Off Noconnection

Green,permanentlyon Connected,datanotbeingtransferred

Green,flashing Datatransfer

Left

Off Halfduplex

Orange,permanentlyon Fullduplex

Orange,flashing Collision
