9.1.5 Technicalspecifications

Specificationsmaychangeaspartofongoingtechnicaldevelopments.

Topics

9.1.5.1 Galvanicisolation

Eachofthedevices’inputs,theEthernet,externalBUS(whereavailable),CAN1

andCOM1,CAN2andCOM2andCOM3interfaces,areallgalvanicallyisolatedfrom

thecentralunit(CPUandpower)aswellasfromeachother.TheCAN1andCOM1

orCAN2andCOM2portsarenotgalvanicallyisolatedfromeachother.Forsystem

reasons,theUSBinterfaceisnotisolated.

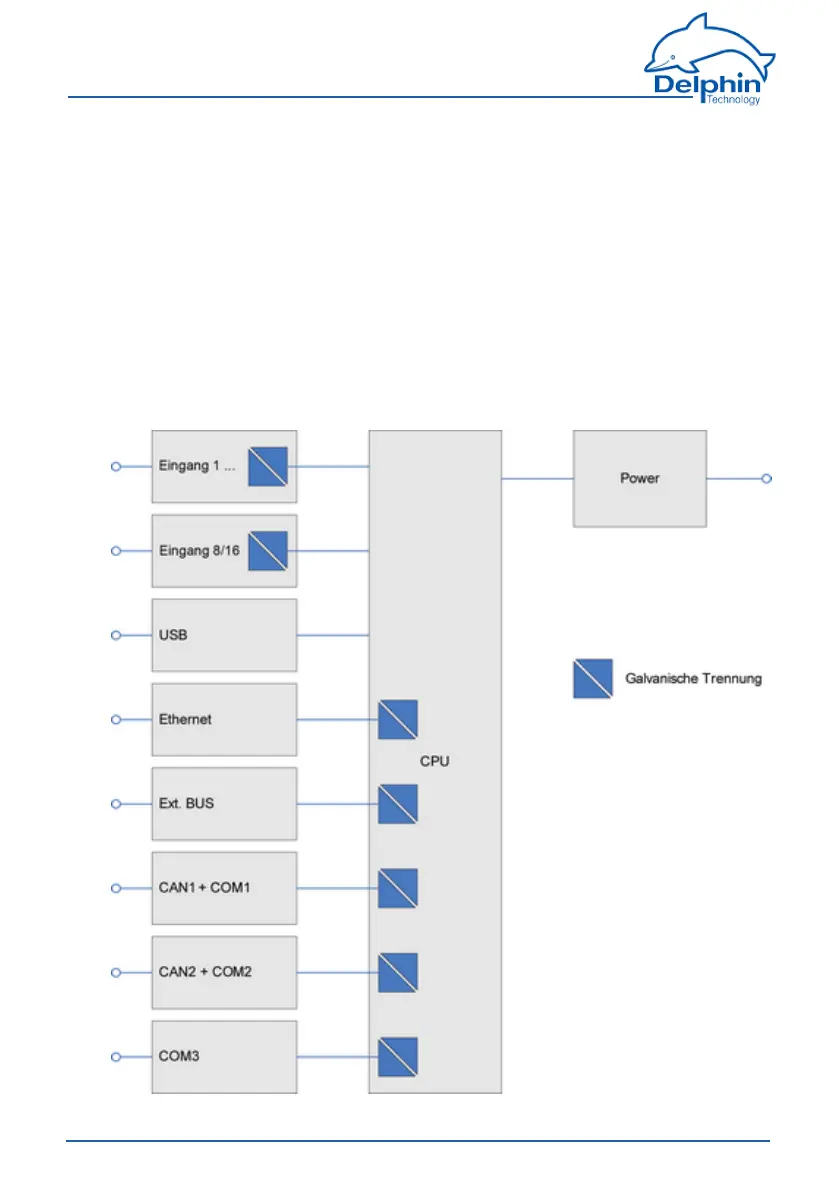

Thediagramshowstheindividualgalvanicisolatingpropertiesofthedevices.The

doesnothaveexternalBUS,sotwoEthernetinterfacesareavailable.


