ProfiMessage
Modulation1:Modulationofamplitude,+50%to-50%,for32measurements
Modulation2:Modulationoffrequency,+50%to-50%,for32measurements
Modulation3:Modulationofphase,+45to-45,for32measurements
Modulation4:Modulationofoffset,+1000mVto-1000mV,for32measurements

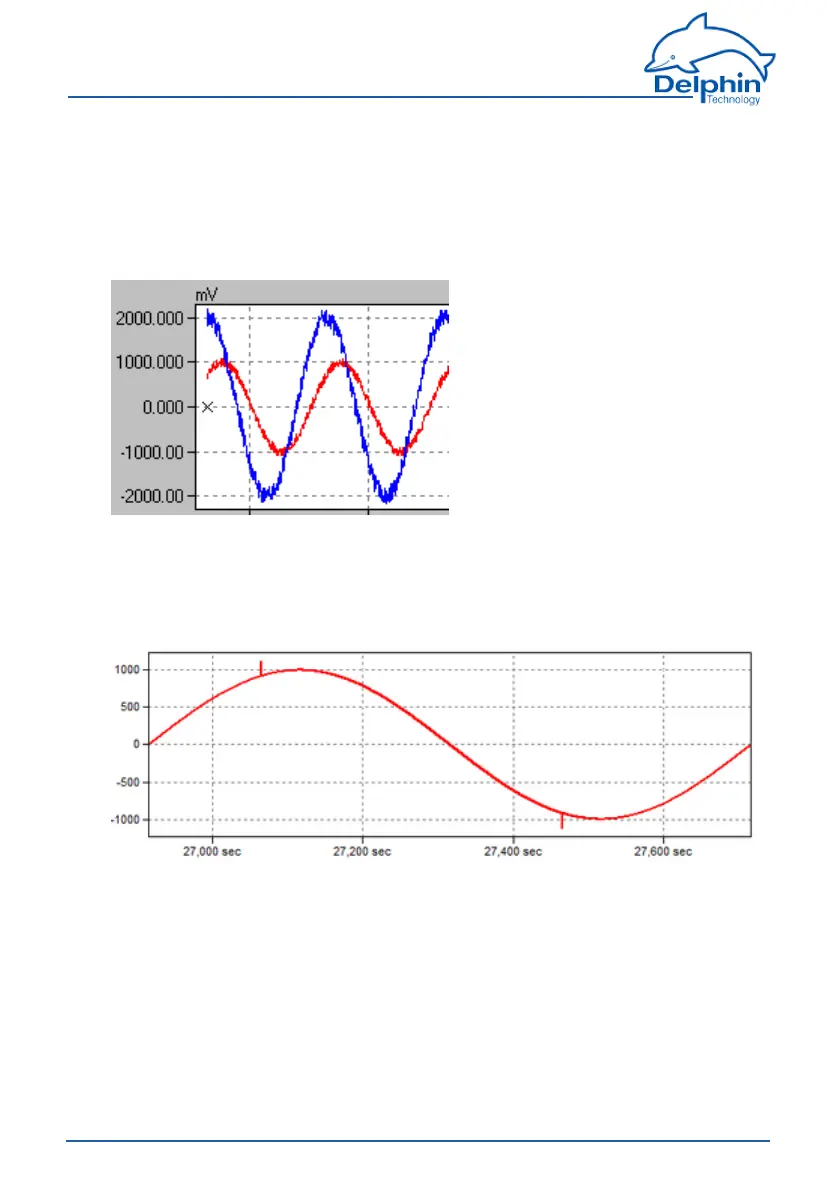

Modulation5:Noiseintherangeof±5%ofamplitude
Example:
Modulation 6
Twoanomaliesof±20%ofamplitudeatposition3/16and11/16ofsignaldur-
ation.
Example:
9.2.1.4 SynchronisingtwoAMDTmodules
Synchronisationenables8+8=16analoguesignals(almost)tobesim-
ultaneouslytriggeredandsampled.Synchronizationisavailableonlyinthe"batch
recoding"operatingmode.
Userexample:
Synchronisationofvibrationmeasurementfrom8+4=12analoguesignals.8
analogueinputsareassignedtoamasterand4analogueinputstoaslave.Periodic
externaltriggerpulse(fromarotatingshaft).Connectedtodigitalinput1ofmas-
terandslave.
249
