ProfiMessage
Additional wiring
Synchronisationrequiresadditionalwiring.Digitalinput4anddigitaloutput4are
connecteddiagonally.Thefeedvoltageandreferencemassshouldalsobecon-
nectedatthesametime.

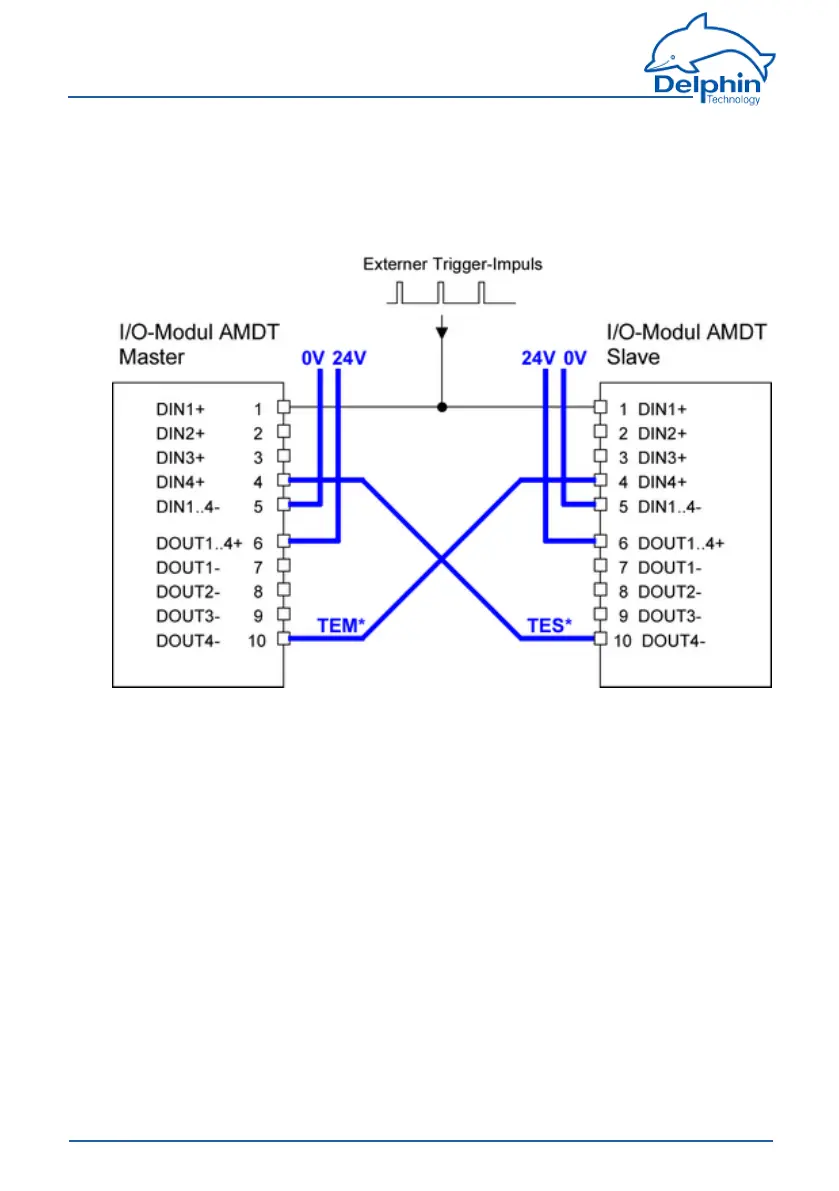

Wiringasuserexample:

Theconnectionsinblue are arealwaysrequired.
Configuration/settings
Operatingmodesettingsareasfollows:
250
Delphin Technology AG
Dezember 2015
ProfiMessage Manual
