Delphin ProfiMessage User Manual

ProfiMessage


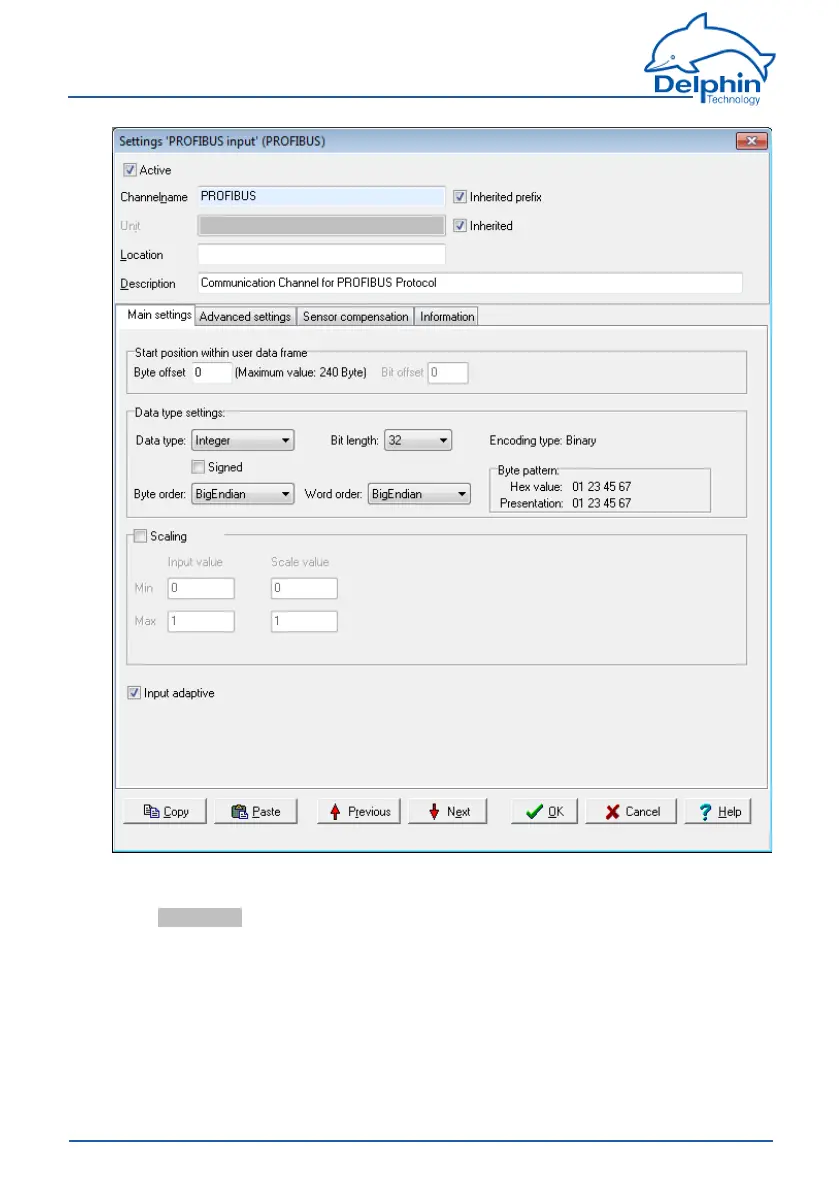

Start position in payload data
l Byte offset
Thelengthofthepayloaddata,i.e.thesizeofthedatafield(DU)ofa
PROFIBUSmessage,islimitedtoamaximumof244bytes.Thisenablesmul-
tiplesignalstobetransmittedwithinamessage.Enterthestartingbytefor
thissignal'spayloaddata
Themaximumpossiblevalueoftheoffsetisderivedfromthebitlengthofthe
datatypeandisdisplayedtotherightofthenumericfield.Inputisrestricted
tothevalidvalues,andthedefaultis0
180
